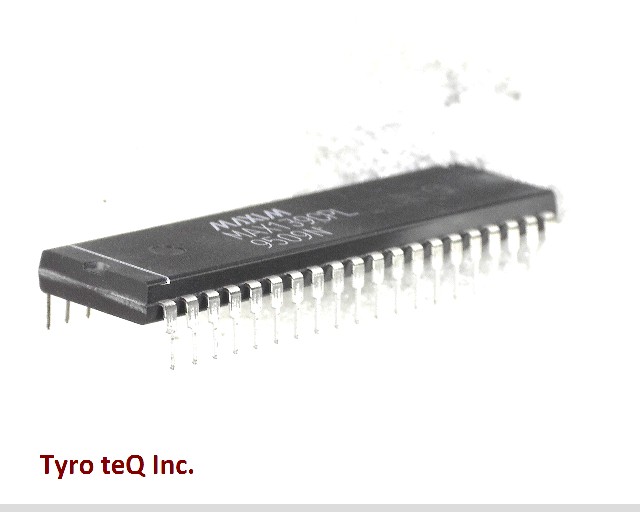

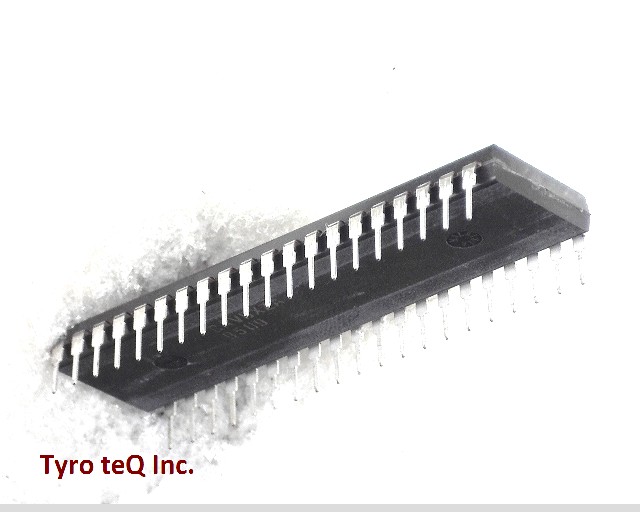

MAX139CPL データシート

Name: MAX139CPL
Brand: MAXIM
SKU: 230037573-0000-0000-0000

MAX139CPL - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX139CPL の詳細情報

型番	MAX139CPL
メーカー	MAXIM
データシート
Analog Input Voltage-Max	0.2 V
Analog Input Voltage-Max (V)	0.2
Converter Type	A/D CONVERTER
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	52.07 mm
Length (mm)	52.07
Linearity Error-Max (EL)	0.0015 %
Linearity Error-Max (EL) (%)	0.0015
Moisture Sensitivity Level	1
Number of Analog In Channels	1
Number of Bits	24
Number of Functions	1
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Bit Code	7-SEGMENT
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5 V
Power Supplies (V)	5
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Seated Height-Max (mm)	5.08
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	15.24 mm
Width (mm)	15.24
