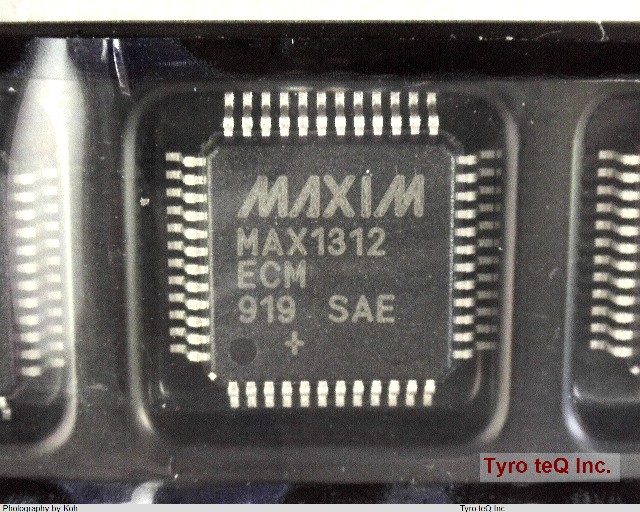

MAX1312ECM+ データシート

Name: MAX1312ECM+
Brand: MAXIM
SKU: 230497586-0000-0000-0000

MAX1312ECM+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX1312ECM+ の詳細情報

型番	MAX1312ECM+
メーカー	MAXIM
データシート
Analog Input Voltage-Max	10 V
Analog Input Voltage-Max (V)	10
Analog Input Voltage-Min	-10 V
Analog Input Voltage-Min (V)	-10
Conversion Time-Max	1.98 us
Conversion Time-Max (us)	1.98
Converter Type	ADC, PROPRIETARY METHOD
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	S-PQFP-G48
JESD-609 Code	e3
Length	7 mm
Length (mm)	7
Linearity Error-Max (EL)	0.0244 %
Linearity Error-Max (EL) (%)	0.0244
Moisture Sensitivity Level	1
Number of Analog In Channels	8
Number of Bits	12
Number of Functions	1
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	TQFP48,.35SQ
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3,5 V
Power Supplies (V)	3,5
Qualification Status	Not Qualified
Sample Rate	0.456 MHz
Sample Rate (MHz)	0.456
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	1.6 mm
Seated Height-Max (mm)	1.6
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
