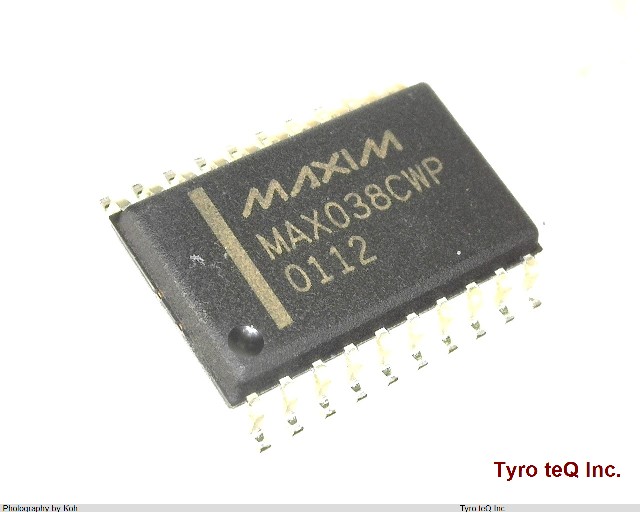

MAX038CWP データシート

Name: MAX038CWP
Brand: MAXIM
SKU: 230337644-0000-0000-0000

MAX038CWP - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX038CWP の詳細情報

型番	MAX038CWP
メーカー	MAXIM
データシート
Additional Feature	ALSO REQUIRES -5V SUPPLY
Analog IC - Other Type	SQUARE; TRIANGULAR; SINE; SAWTOOTH; PULSE
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.8 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Frequency-Max	20 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Sub Category	Analog Waveform Generation Functions
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
