MAX038CPP データシート

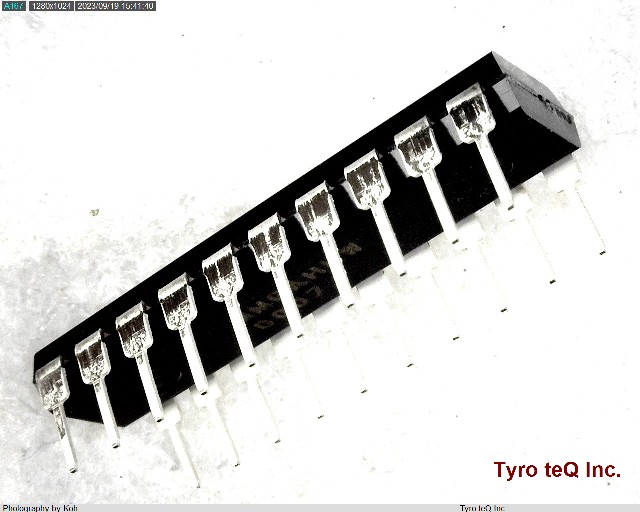

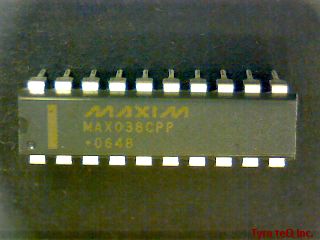

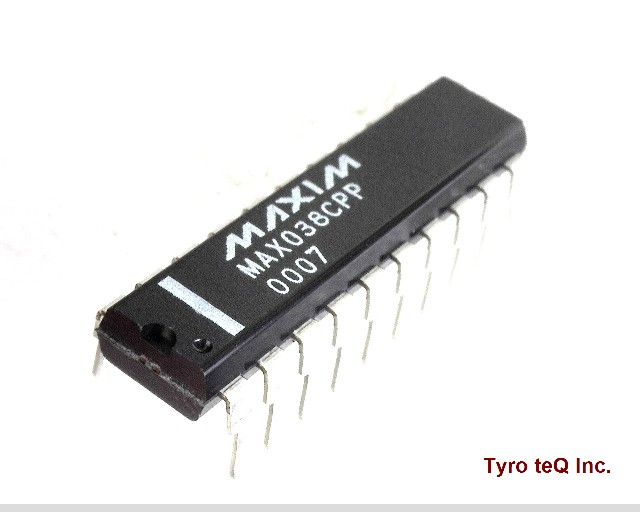

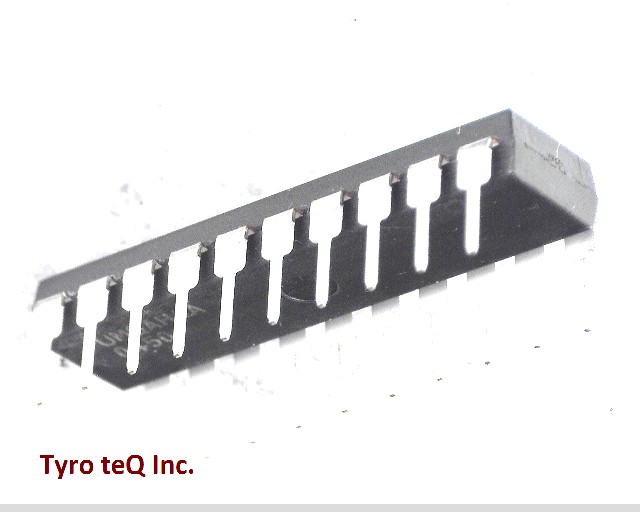

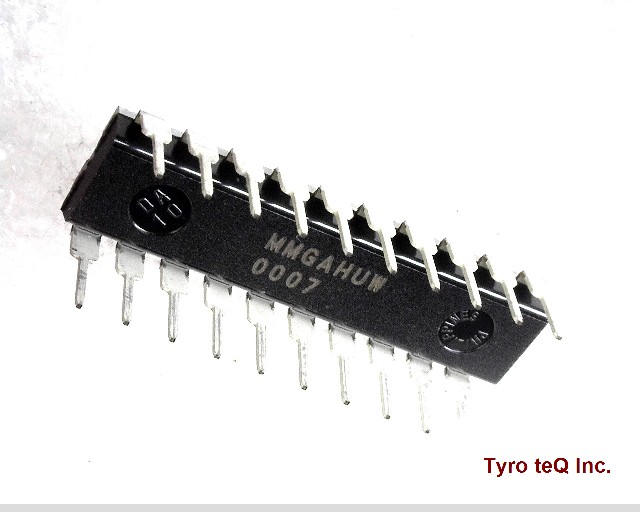

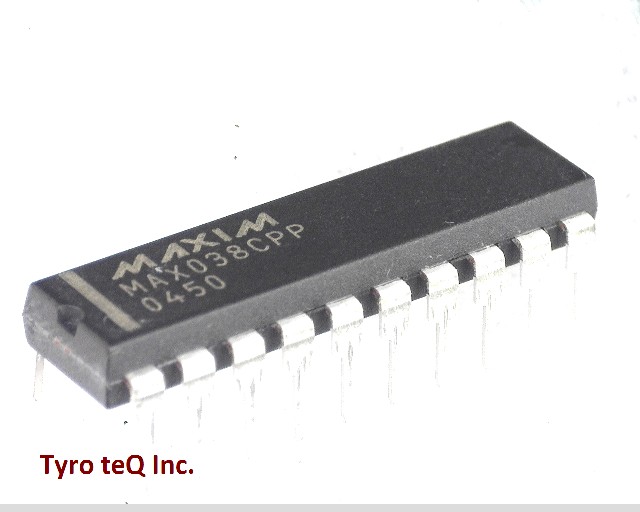

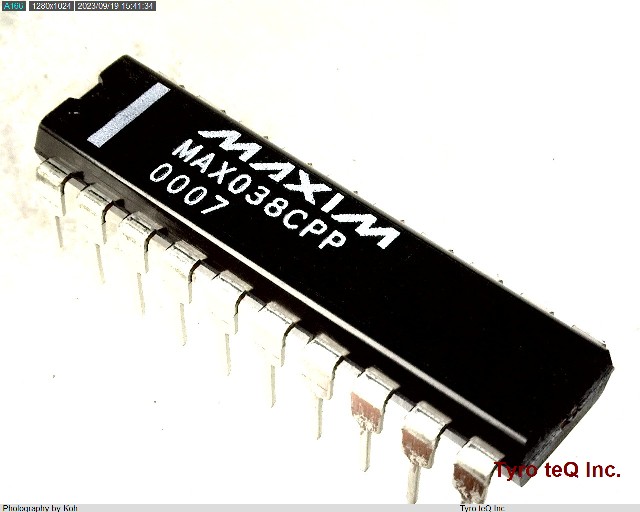

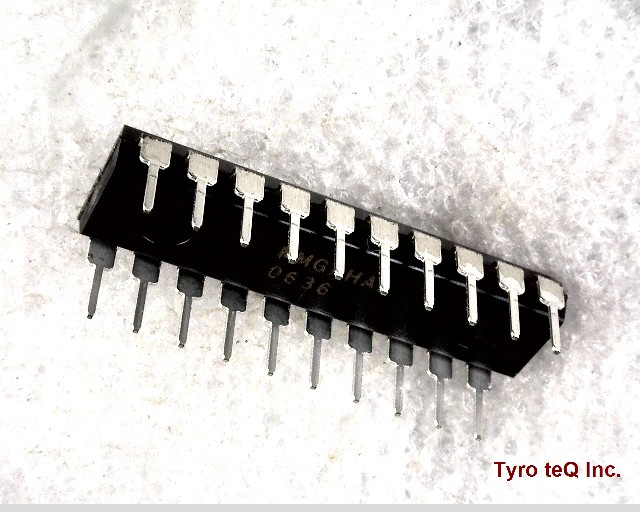

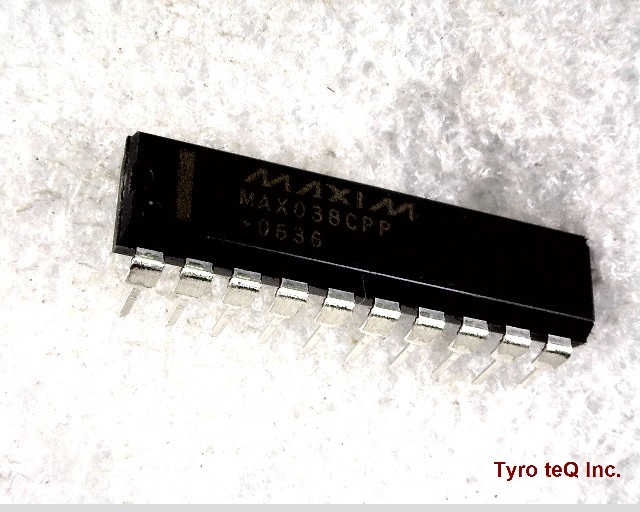

Name: MAX038CPP
Brand: MAXIM
SKU: 230037493-0000-0000-0000

MAX038CPP - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX038CPP の詳細情報

型番	MAX038CPP
メーカー	MAXIM
データシート
Additional Feature	ALSO REQUIRES -5V SUPPLY
Analog IC - Other Type	SQUARE; TRIANGULAR; SINE; SAWTOOTH; PULSE
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	26.16 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Frequency-Max	20 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Analog Waveform Generation Functions
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
