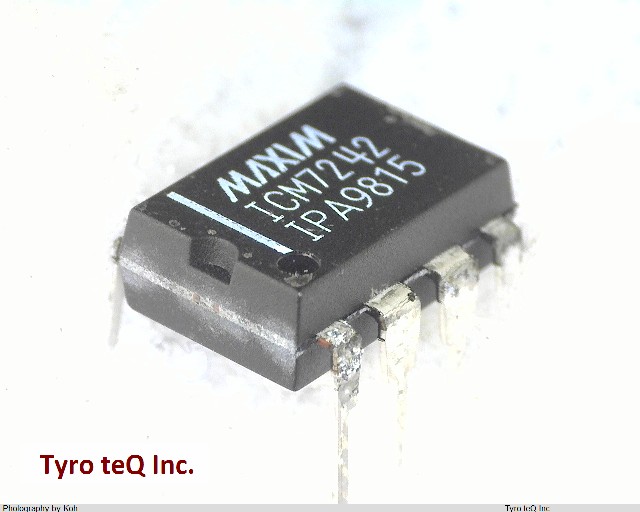

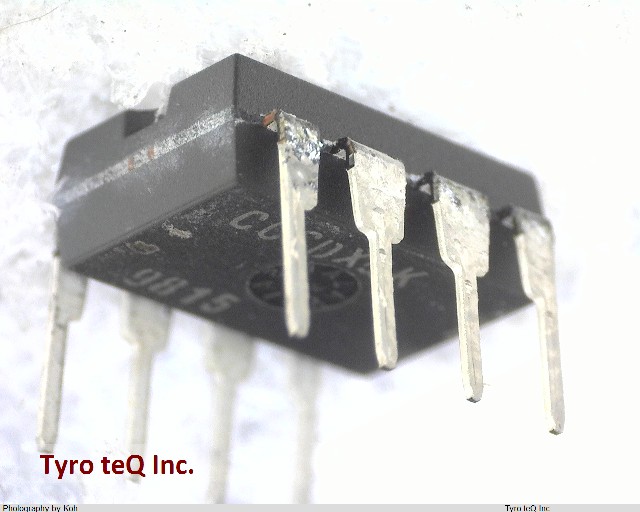

ICM7242IPA

Name: ICM7242IPA
Brand: MAXIM
SKU: 190107895-0000-0000-0000

ICM7242IPA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

ICM7242IPA の詳細情報

型番	ICM7242IPA
メーカー	MAXIM
Analog IC - Other Type	PULSE; RECTANGULAR
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Length (mm)	9.375
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-25 Cel
Operating Temperature-Min (Cel)	-20
Output Frequency-Max	2 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Power Supplies (V)	5
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	0.8 mA
Supply Voltage-Max (V)	16
Supply Voltage-Max (Vsup)	16 V
Supply Voltage-Min (V)	2
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	7.62 mm
Width (mm)	7.62
