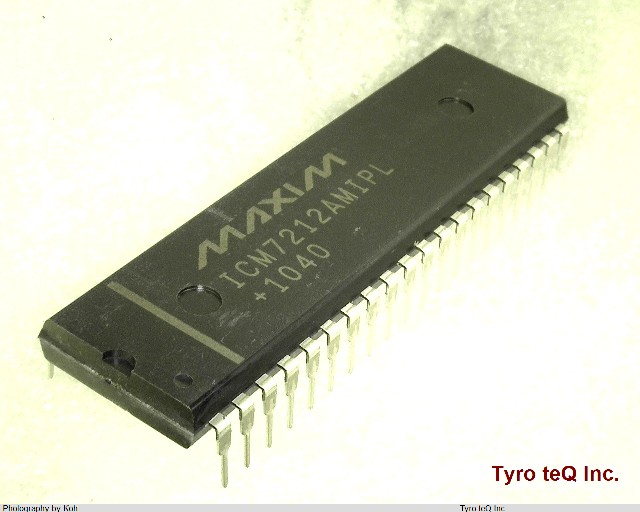

ICM7212AMIPL+ Max02

ICM7212AMIPL+ - MAXIM の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

ICM7212AMIPL+ の詳細情報

  • 仕様・詳細
  • メーカー情報
型番ICM7212AMIPL+
メーカーMAXIM
Additional Feature COMMON-ANODE
DLA Qualification Not Qualified
Data Input Mode PARALLEL
Display Mode SEGMENT
Input Characteristics STANDARD
Interface IC Type LED DISPLAY DRIVER
J-STD-609 Code e3
JESD-30 Code R-PDIP-T40
JESD-609 Code e3
Length 52.075 mm
Length (mm) 52.075
Moisture Sensitivity Level 1
Multiplexed Display Capability NO
Number of Digits/Characters 4-DIGIT
Number of Functions 1
Number of Segments 7
Number of Terminals 40
Operating Temperature-Max 85 Cel
Operating Temperature-Max (Cel) 85
Operating Temperature-Min -20 Cel
Operating Temperature-Min (Cel) -20
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 5 V
Power Supplies (V) 5
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Seated Height-Max (mm) 5.08
Sub Category Display Drivers
Supply Voltage-Max 6 V
Supply Voltage-Max (V) 6
Supply Voltage-Min 4 V
Supply Voltage-Min (V) 4
Supply Voltage-Nom 5 V
Supply Voltage-Nom (V) 5
Surface Mount NO
Technology CMOS
Temperature Grade OTHER
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Pitch (mm) 2.54
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 15.24 mm
会社名称Maxim Integrated Products, Inc.
設立1983
所在地160 Rio Robles San Jose, CA 95134 USA
URLhttp://www.maxim-ic.com/
