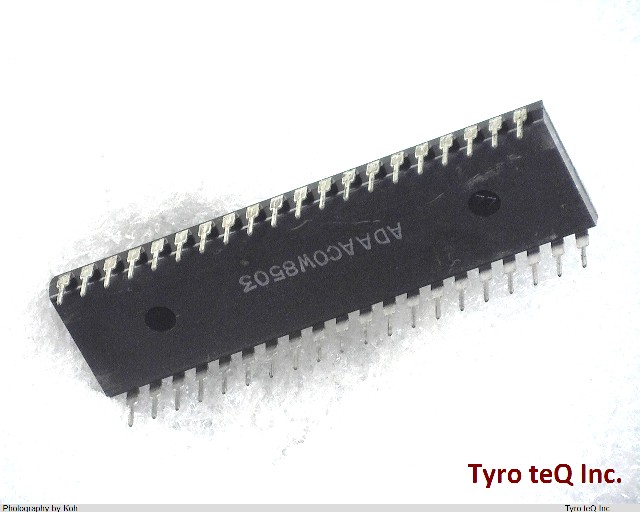

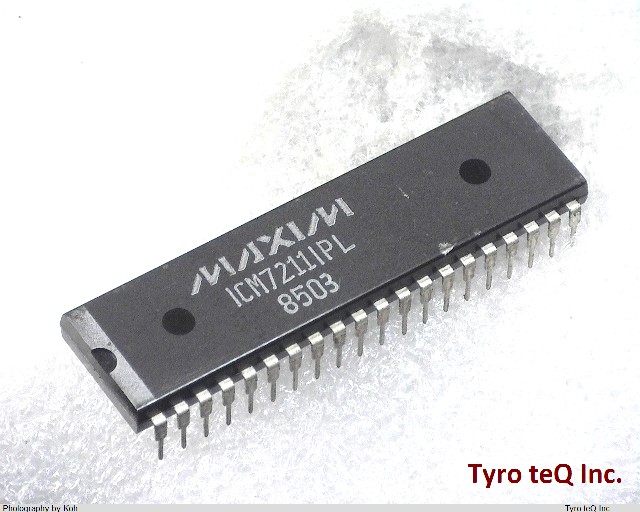

ICM7211IPL

Name: ICM7211IPL
Brand: MAXIM
SKU: 190108509-0000-0000-0000

ICM7211IPL - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

ICM7211IPL の詳細情報

型番	ICM7211IPL
メーカー	MAXIM
DLA Qualification	Not Qualified
Data Input Mode	PARALLEL
Display Mode	SEGMENT
Input Characteristics	STANDARD
Interface IC Type	LIQUID CRYSTAL DISPLAY DRIVER
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	51.75 mm
Length (mm)	52.075
Moisture Sensitivity Level	1
Multiplexed Display Capability	NO
Number of Backplanes	1-BP
Number of Digits/Characters	4-DIGIT
Number of Functions	1
Number of Segments	7
Number of Terminals	40
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-20
Output Characteristics	TOTEM-POLE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Seated Height-Max (mm)	5.08
Sub Category	Other Interface ICs
Supply Current-Max	0.05 mA
Supply Voltage-Max	6 V
Supply Voltage-Max (V)	6
Supply Voltage-Min	3 V
Supply Voltage-Min (V)	3
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	15.24 mm
