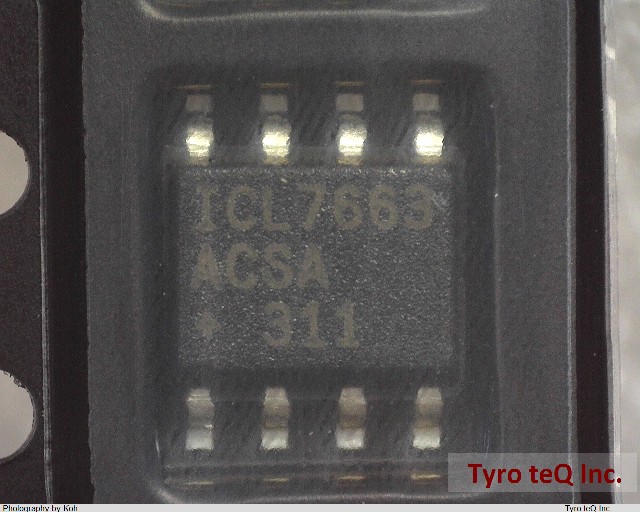

ICL7663ACSA+

Name: ICL7663ACSA+
Brand: MAXIM
SKU: 190110517-0000-0000-0000

ICL7663ACSA+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

ICL7663ACSA+ の詳細情報

型番	ICL7663ACSA+
メーカー	MAXIM
Adjustability	FIXED/ADJUSTABLE
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Length (mm)	4.9
Line Regulation-Max (%/V)	0.35
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current1-Max	0.04 A
Output Current1-Max (A)	0.04
Output Voltage1-Max	16 V
Output Voltage1-Max (V)	16
Output Voltage1-Min	1.3 V
Output Voltage1-Min (V)	1.3
Output Voltage1-Nom	5 V
Output Voltage1-Nom (V)	5
Output Voltage2-Max	16 V
Output Voltage2-Max (V)	16
Output Voltage2-Min	1.3 V
Output Voltage2-Min (V)	1.3
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Tolerance-Max	5 %
Voltage Tolerance-Max (%)	5
