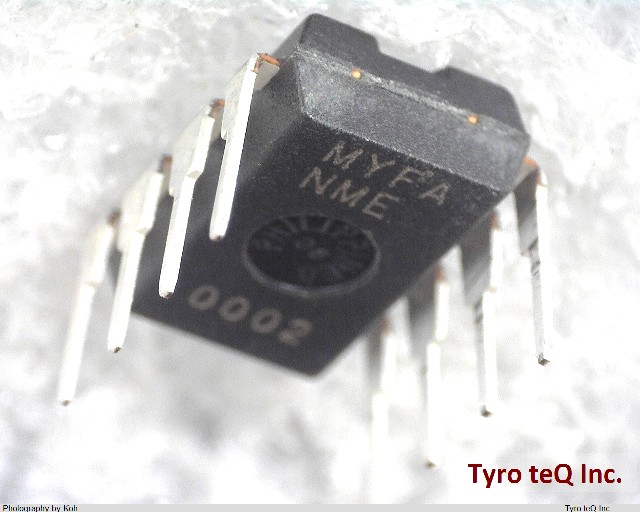

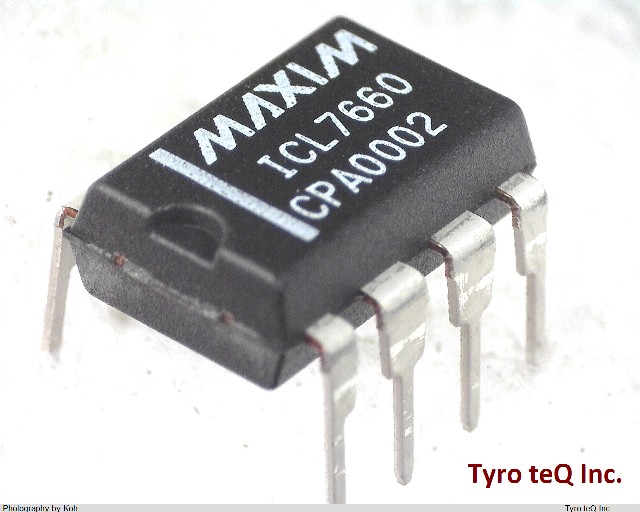

ICL7660CPA

Name: ICL7660CPA
Brand: MAXIM
SKU: 190106572-0000-0000-0000

ICL7660CPA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

ICL7660CPA の詳細情報

型番	ICL7660CPA
メーカー	MAXIM
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
DLA Qualification	Not Qualified
Input Voltage-Max	10 V
Input Voltage-Max (V)	10
Input Voltage-Min	1.5 V
Input Voltage-Min (V)	1.5
Input Voltage-Nom	5 V
Input Voltage-Nom (V)	5
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Length (mm)	9.375
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	0.02 A
Output Current-Max (A)	0.02
Output Voltage-Max (V)	-10
Output Voltage-Min (V)	-1.5
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	0.225 mA
Supply Current-Max (mA)	0.225
Surface Mount	NO
Switcher Configuration	DOUBLER
Switching Frequency-Max	10 kHz
Switching Frequency-Max (kHz)	10
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	7.62 mm
Width (mm)	7.62
