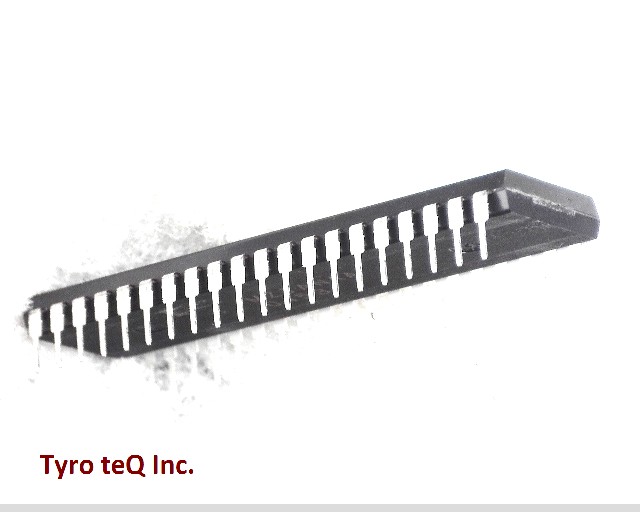

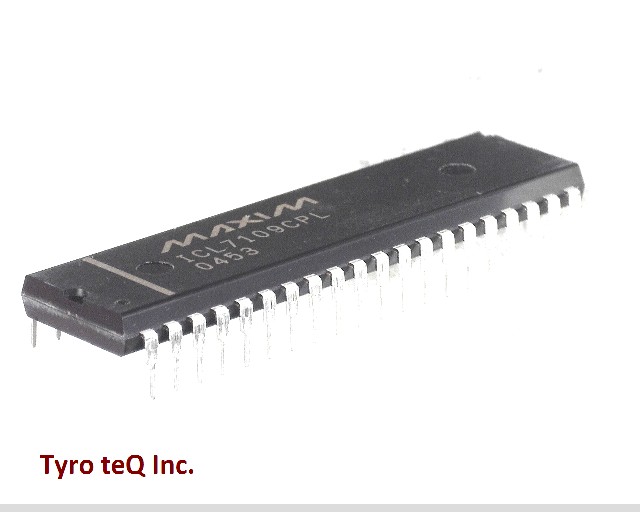

ICL7109CPL

Name: ICL7109CPL
Brand: MAXIM
SKU: 190106361-0000-0000-0000

ICL7109CPL - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

ICL7109CPL の詳細情報

型番	ICL7109CPL
メーカー	MAXIM
Analog Input Voltage-Max	2 V
Analog Input Voltage-Max (V)	3.5
Analog Input Voltage-Min	-9 V
Analog Input Voltage-Min (V)	-3.5
Converter Type	A/D CONVERTER
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	51.75 mm
Length (mm)	52.075
Linearity Error-Max (EL)	0.024 %
Linearity Error-Max (EL) (%)	0.0244
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Bit Code	BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-5 V
Power Supplies (V)	+-5
Qualification Status	Not Qualified
Sample Rate	50 MHz
Seated Height-Max	5.08 mm
Seated Height-Max (mm)	5.08
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	15.24 mm
