DS5000-32-16+ Max02

DS5000-32-16+ - MAXIM の商品詳細ページです。

1

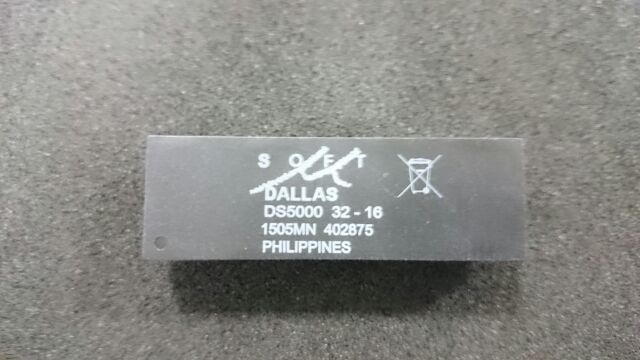

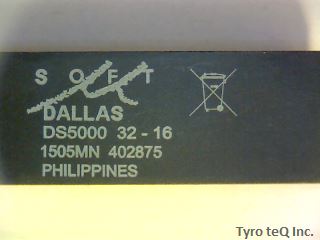

DS5000-32-16+
  • DS5000-32-16+
  • DS5000-32-16+
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

DS5000-32-16+ の詳細情報

  • 仕様・詳細
  • メーカー情報
型番DS5000-32-16+
メーカーMAXIM
ADC Channels NO
Additional Feature NON VOLATILE RAM
Address Bus Width 16
Bit Size 8
CPU Family 8051
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 8
JESD-30 Code R-XDIP-T40
JESD-609 Code e3
Length 53.086 mm
Number of I/O Lines 32
Number of Terminals 40
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
PWM Channels NO
Package Body Material UNSPECIFIED
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies 5 V
Qualification Status Not Qualified
RAM (bytes) 32768
Seated Height-Max 9.779 mm
Speed 16 rpm
Sub Category Microcontrollers
Supply Current-Max 54 mA
Supply Voltage-Max 5.25 V
Supply Voltage-Min 4.75 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
会社名称Maxim Integrated Products, Inc.
設立1983
所在地160 Rio Robles San Jose, CA 95134 USA
URLhttp://www.maxim-ic.com/

DS5000-32-16+のレビュー

DS5000-32-16+ のご注文について
