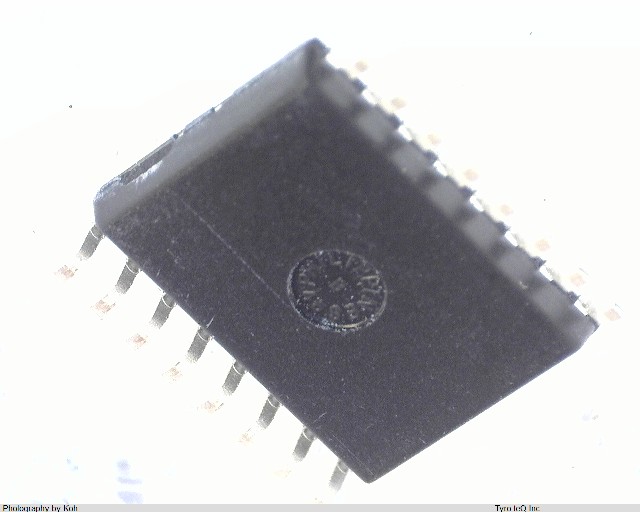

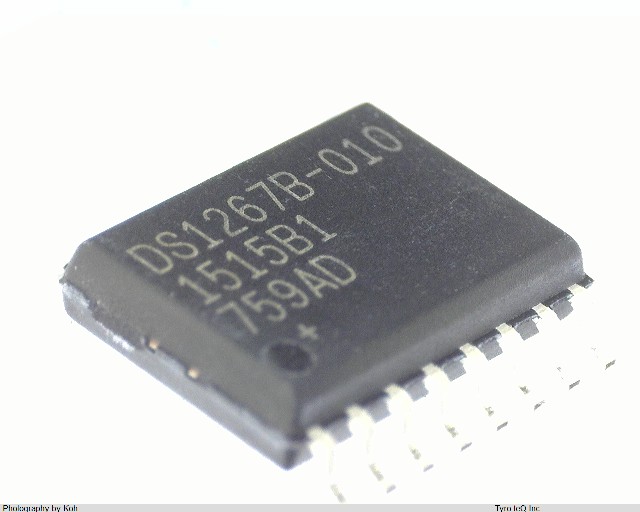

DS1267BS-010+

Name: DS1267BS-010+
Brand: MAXIM
SKU: 140188681-0000-0000-0000

DS1267BS-010+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

DS1267BS-010+ の詳細情報

型番	DS1267BS-010+
メーカー	MAXIM
Control Interface	3-WIRE SERIAL
Converter Type	DIGITAL POTENTIOMETER
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	10.3 mm
Length (mm)	10.3
Moisture Sensitivity Level	1
Number of Functions	2
Number of Positions	256
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supplies (V)	5
Qualification Status	Not Qualified
Resistance Law	LINEAR
Resistance Tolerance-Max	20 %
Resistance Tolerance-Max (%)	20
Resistor Terminal Voltage-Max	6 V
Resistor Terminal Voltage-Max (V)	6
Resistor Terminal Voltage-Min	-6 V
Resistor Terminal Voltage-Min (V)	-6
Seated Height-Max	2.65 mm
Seated Height-Max (mm)	2.65
Sub Category	Digital Potentiometers
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Temperature Coefficient-Nom	750 ppm/Cel
Temperature Coefficient-Nom (ppm/Cel)	750
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Total Resistance-Nom	10000 ohm
Total Resistance-Nom (ohm)	10000
Width	7.5 mm
