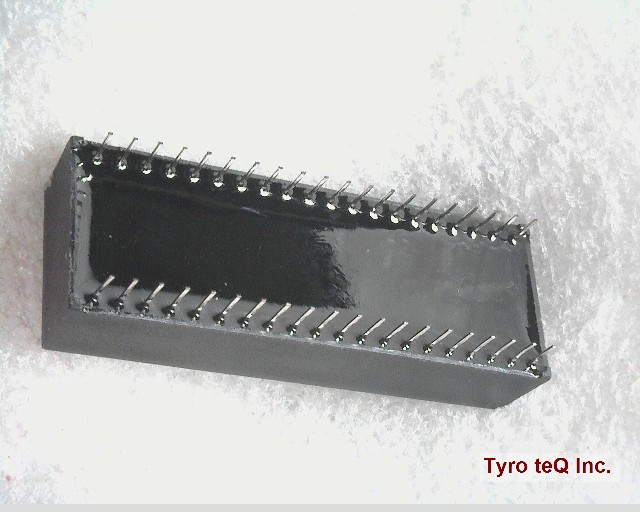

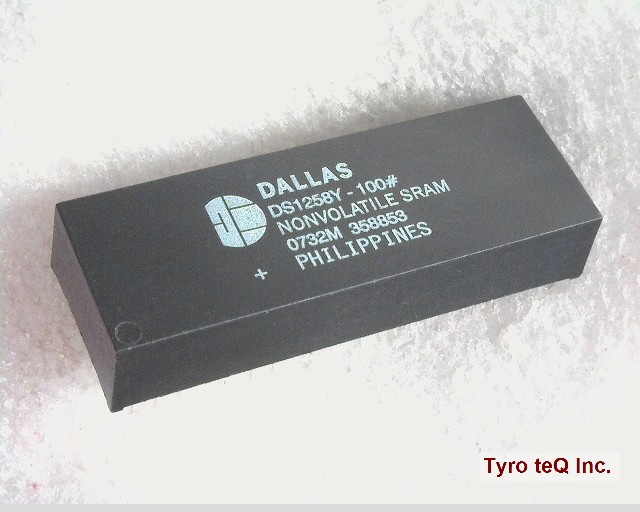

DS1258Y-100

Name: DS1258Y-100
Brand: MAXIM
SKU: 140193663-0000-0000-0000

DS1258Y-100 - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

DS1258Y-100 の詳細情報

型番	DS1258Y-100
メーカー	MAXIM
Access Time-Max	100 ns
Access Time-Max (ns)	100
Additional Feature	10 YEAR DATA RETENTION
DLA Qualification	Not Qualified
J-STD-609 Code	e0
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length (mm)	53.085
Memory Density	2097152 bit
Memory Density (bits)	2097152
Memory IC Type	NON-VOLATILE SRAM MODULE
Memory Organization	128KX16
Memory Width	16
Number of Functions	1
Number of Ports	1
Number of Terminals	40
Number of Words	131072 words
Number of Words (words)	131072
Number of Words Code	128K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	-40
Organization	128KX16
Output Characteristics	3-STATE
Output Enable	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Power Supplies (V)	5
Qualification Status	Not Qualified
Seated Height-Max (mm)	9.27
Standby Current-Max (A)	0.01
Sub Category	SRAMs
Supply Current-Max (mA)	170
Supply Voltage-Max (V)	5.5
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	PIN/PEG
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
