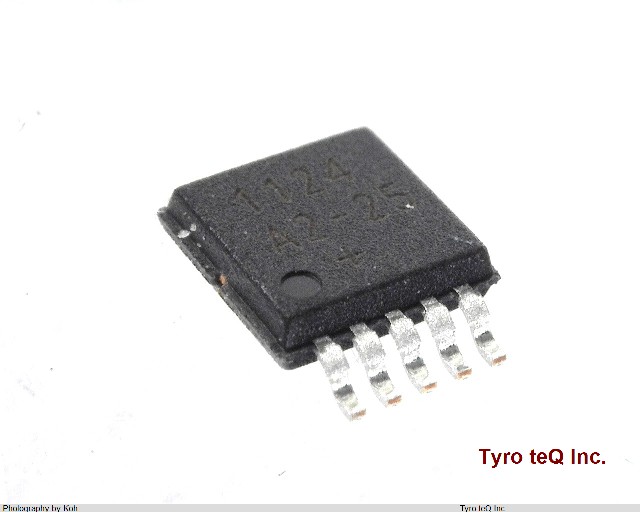

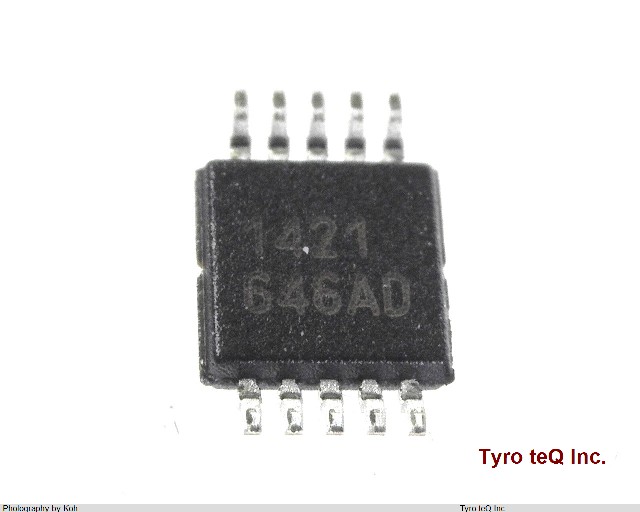

DS1124U-25+

Name: DS1124U-25+
Brand: MAXIM
SKU: 140193626-0000-0000-0000

DS1124U-25+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

DS1124U-25+ の詳細情報

型番	DS1124U-25+
メーカー	MAXIM
DLA Qualification	Not Qualified
Family	1124
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Logic IC Type	ACTIVE DELAY LINE
Moisture Sensitivity Level	1
Number of Functions	1
Number of Taps/Steps	255
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supplies (V)	5
Power Supply Current-Max (ICC)	30 mA
Programmable Delay Line	NO
Prop. Delay@Nom-Sup	88 ns
Propagation Delay-Max@Nom-Sup (ns)	88
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Delay Lines
Supply Current-Max (mA)	30
Supply Voltage-Max (V)	5.25
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (V)	4.75
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
