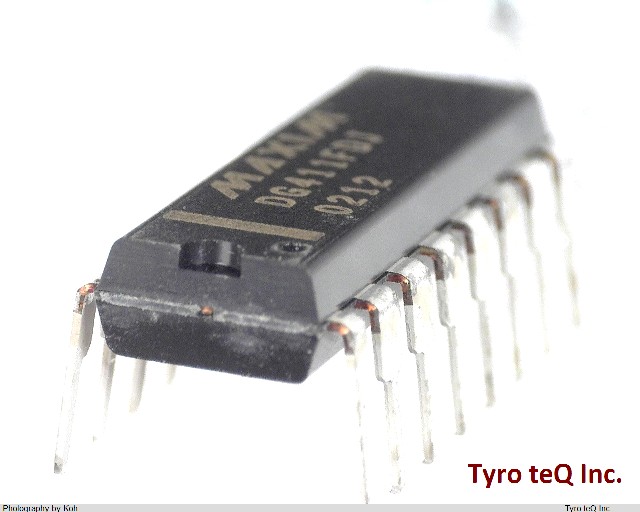

DG411FDJ

Name: DG411FDJ
Brand: MAXIM
SKU: 140170533-0000-0000-0000

DG411FDJ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

DG411FDJ の詳細情報

型番	DG411FDJ
メーカー	MAXIM
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.175 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-20 V
Neg Supply Voltage-Min (Vsup)	-4.5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NC V
Number of Channels	1
Number of Functions	4
Number of Terminals	16
Off-state Isolation-Nom	65 dB
On-state Resistance Match-Nom	0.2 ohm
On-state Resistance-Max (Ron)	35 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	20 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	145 ns
Switch-on Time-Max	175 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
