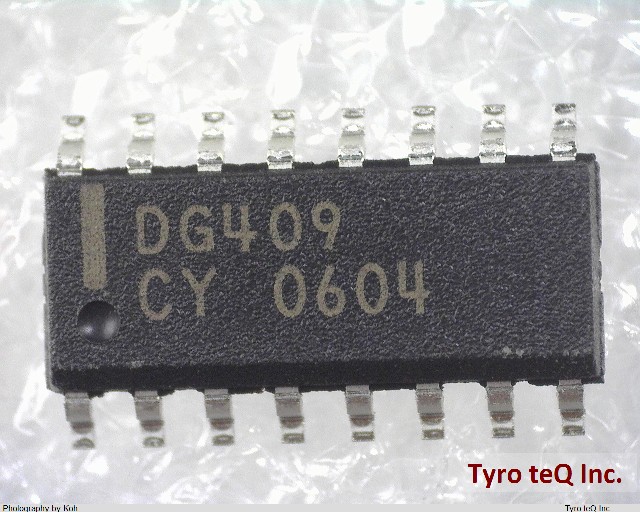

DG409CY

Name: DG409CY
Brand: MAXIM
SKU: 140074999-0000-0000-0000

DG409CY - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

DG409CY の詳細情報

型番	DG409CY
メーカー	MAXIM
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Length (mm)	9.9
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-20 V
Neg Supply Voltage-Min (Vsup)	-5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Max (V)	-20
Negative Supply Voltage-Min (V)	-5
Negative Supply Voltage-Nom (V)	-15
Number of Channels	4
Number of Functions	2
Number of Terminals	16
Off-state Isolation-Nom	75 dB
Off-state Isolation-Nom (dB)	75
On-state Resistance Match-Nom	1.5 ohm
On-state Resistance-Max (Ron)	100 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Signal Current-Max	0.02 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	2 mA
Supply Voltage-Max (Vsup)	20 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Switch-off Time-Max	175 ns
Switch-on Time-Max	175 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
