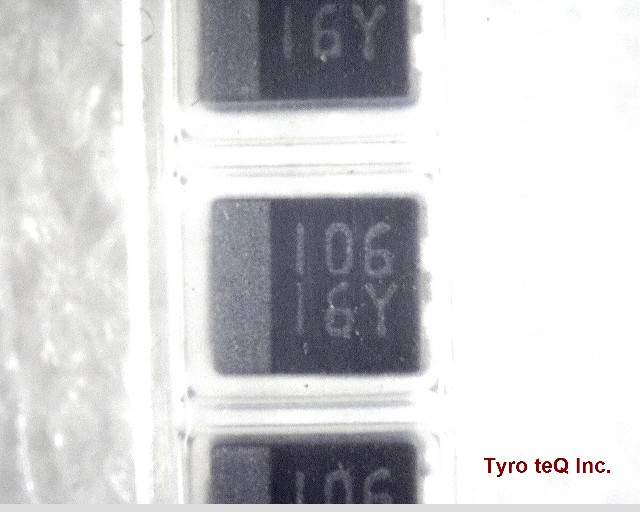

267E1602-106MR

Name: 267E1602-106MR
Brand: MATSUO
SKU: 30121281-0000-0000-0000

267E1602-106MR - MATSUO の商品詳細ページです。

２営業日以内に回答いたします

267E1602-106MR の詳細情報

型番	267E1602-106MR
メーカー	MATSUO
Additional Feature	ESR IS MEASURED AT 100 KHZ
Capacitance	10 uF
Capacitance (uF)	10
Capacitor Type	TANTALUM CAPACITOR
Dielectric Material	TANTALUM (DRY/SOLID)
ESR (mohm)	2000
Height (mm)	1.6
J-STD-609 Code	e3
JESD-609 Code	e3
Leakage Current	.0016 mA
Leakage Current (mA)	0.0016
Length (mm)	3.2
Manufacturer Series	267E
Mounting Feature	SURFACE MOUNT
Negative Tolerance	20 %
Negative Tolerance (%)	20
Number of Terminals	2
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-55 Cel
Operating Temperature-Min (Cel)	-55
Package Shape	RECTANGULAR PACKAGE
Package Style	SMT Meter
Packing Method	TAPE
Polarity	POLARIZED
Positive Tolerance	20 %
Positive Tolerance (%)	20
Rated DC Voltage (URdc)	16 V
Rated DC Voltage (URdc) (V)	16
Size Code	1206
Tan Delta	0.06
Terminal Finish	Tin (Sn)
Terminal Shape	J BEND
Width (mm)	1.6
