MX29LV400CTTI-70G Macronix

MX29LV400CTTI-70G - MACRONIX の商品詳細ページです。

1

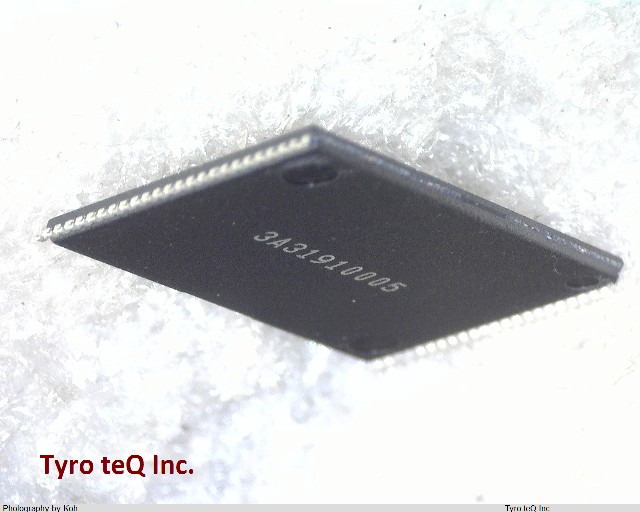

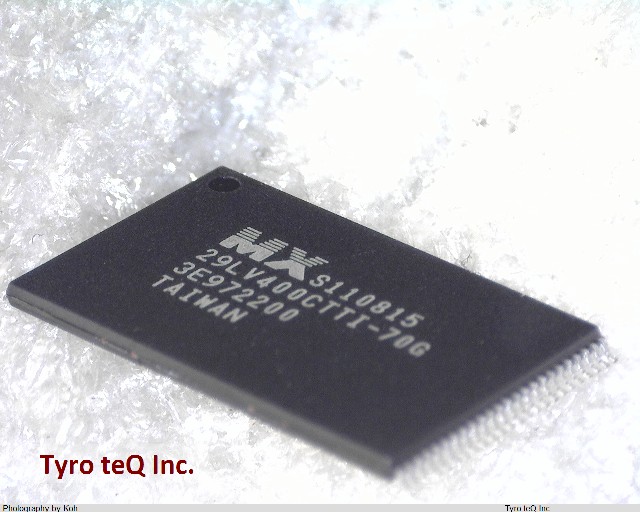

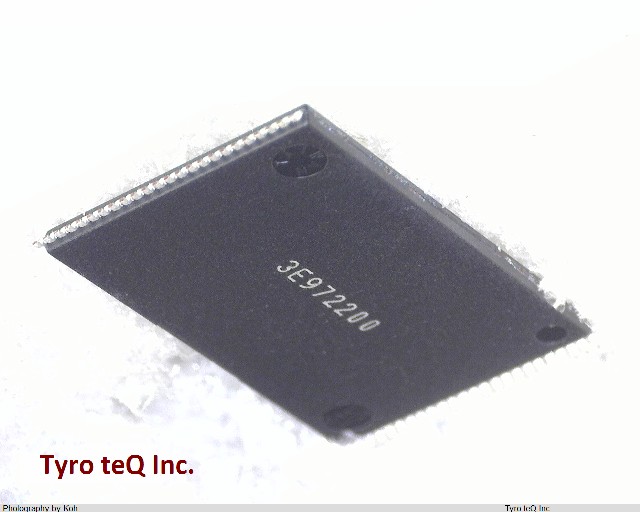

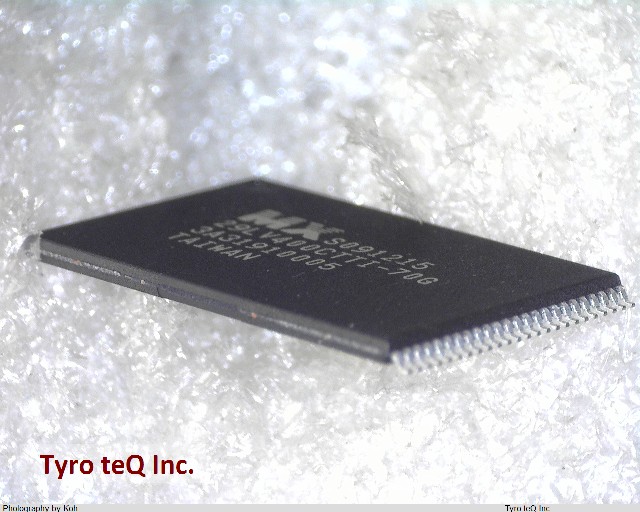

MX29LV400CTTI-70G
  • MX29LV400CTTI-70G
  • MX29LV400CTTI-70G
  • MX29LV400CTTI-70G
  • MX29LV400CTTI-70G
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

MX29LV400CTTI-70G の詳細情報

  • 仕様・詳細
  • メーカー情報
型番MX29LV400CTTI-70G
メーカーMACRONIX
Access Time-Max (ns) 70
Alternate Memory Width 8
Boot Block TOP
Command User Interface YES
Common Flash Interface YES
DLA Qualification Not Qualified
Data Polling YES
Data Retention Time-Min 20
Endurance (Write/Erase Cycles) 100000
J-STD-609 Code e3
JESD-30 Code R-PDSO-G48
Length (mm) 18.4
Memory Density (bits) 4194304
Memory IC Type FLASH
Memory Organization 256KX16
Memory Width 16
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 1,2,1,7
Number of Terminals 48
Number of Words (words) 262144
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Power Supplies (V) 3/3.3
Programming Voltage (V) 3
Ready/Busy YES
Seated Height-Max (mm) 1.2
Sector Size (words) 16K,8K,32K,64K
Standby Current-Max (A) 5.0E-6
Sub Category Flash Memories
Supply Current-Max (mA) 30
Supply Voltage-Max (V) 3.6
Supply Voltage-Min (V) 2.7
Supply Voltage-Nom (V) 3
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch (mm) 0.5
会社名称Macronix International Co., Ltd.
設立 December 1989
資本金NT$33.8 Billion (as of 2011/12/31
所在地No.16, Li-Hsin Road, Science Park, Hsin-chu, Taiwan, R.O.C.
URLhttp://www.macronix.com/

MX29LV400CTTI-70Gのレビュー

MX29LV400CTTI-70G のご注文について
