MX29GL512FHT2I-10Q Macronix

MX29GL512FHT2I-10Q - MACRONIX の商品詳細ページです。

1

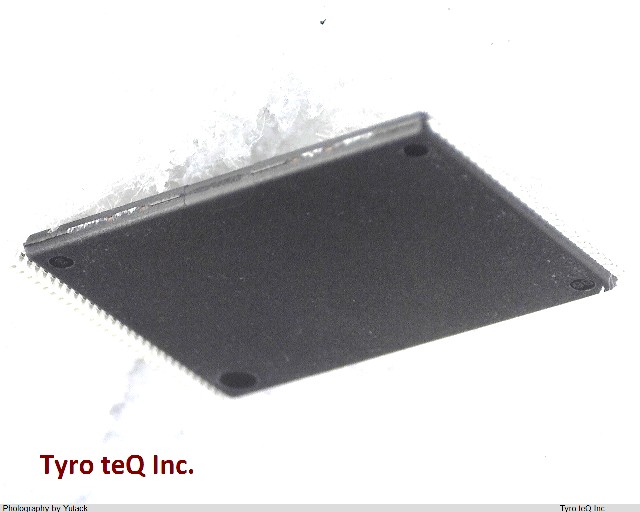

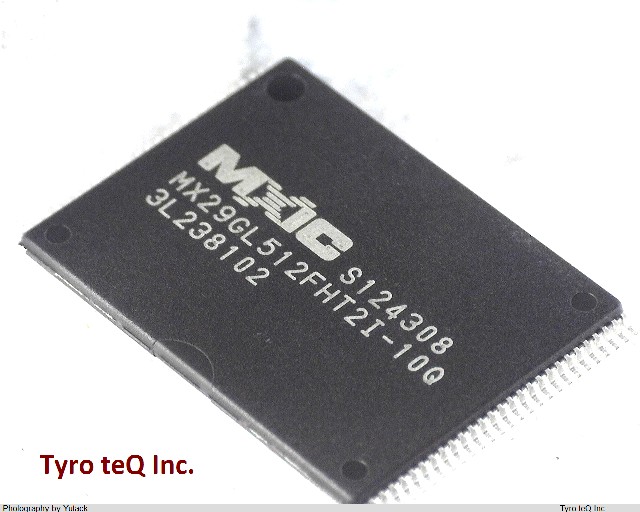

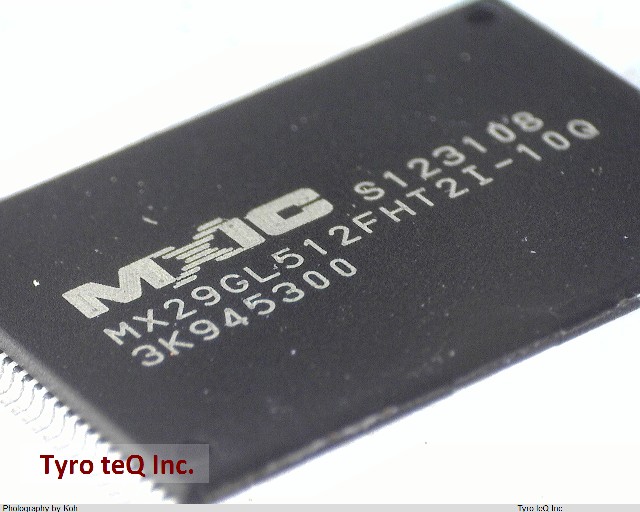

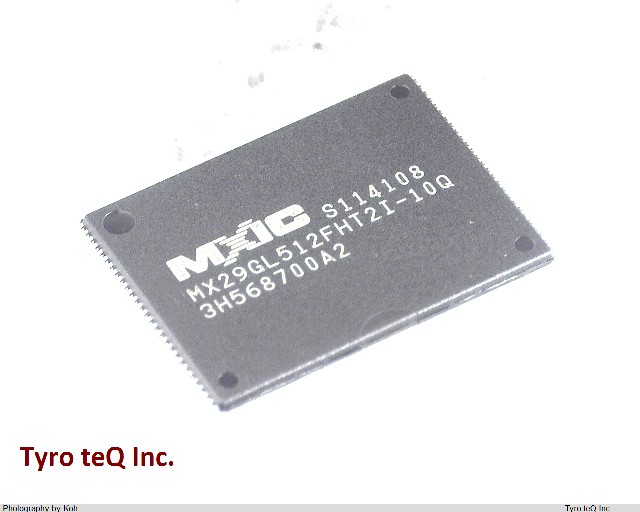

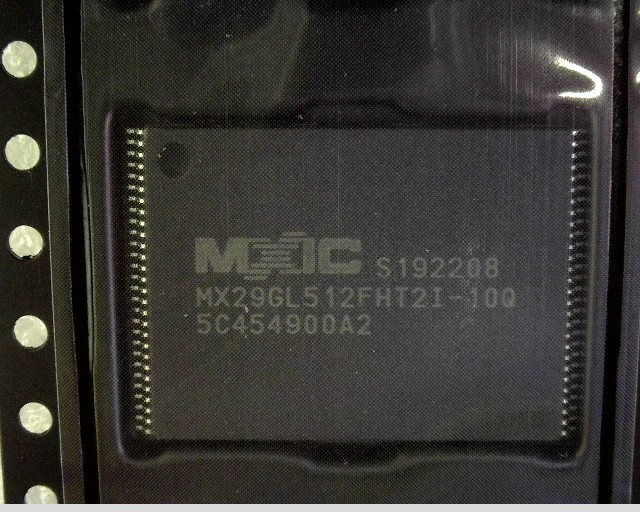

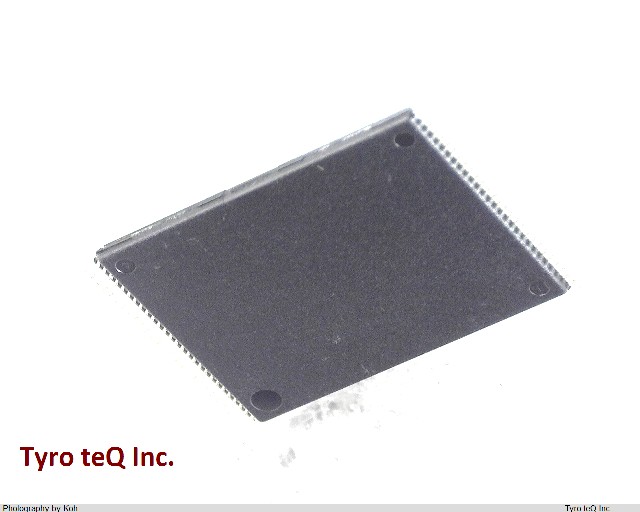

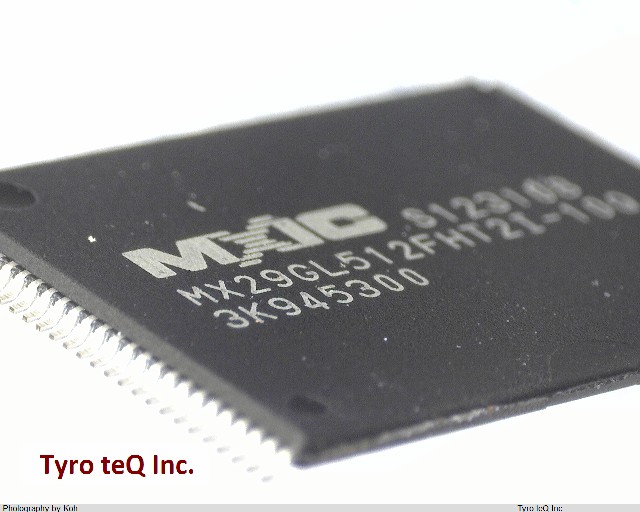

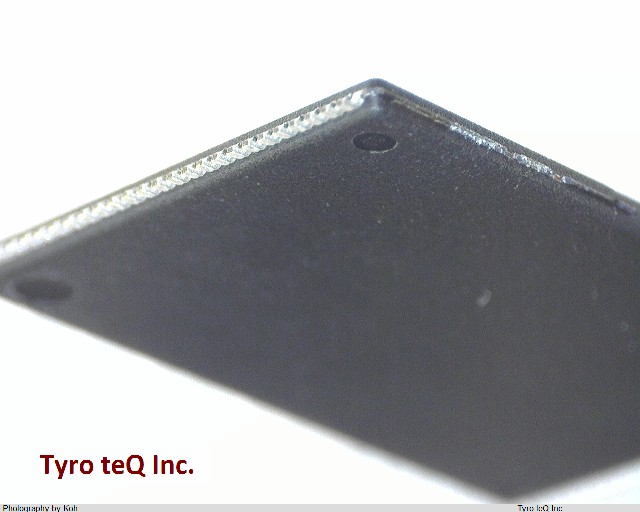

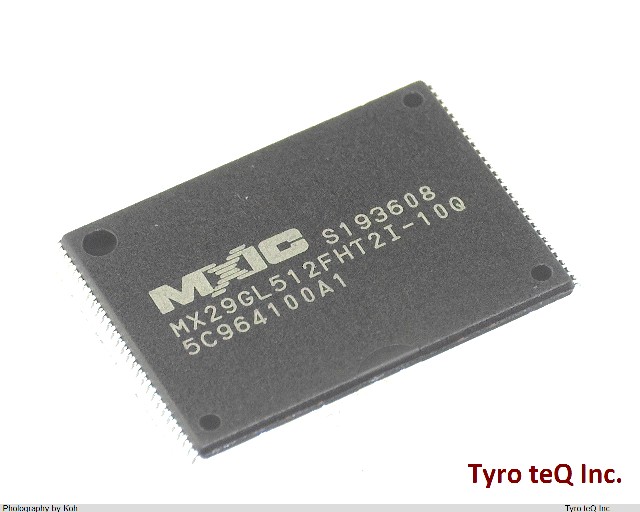

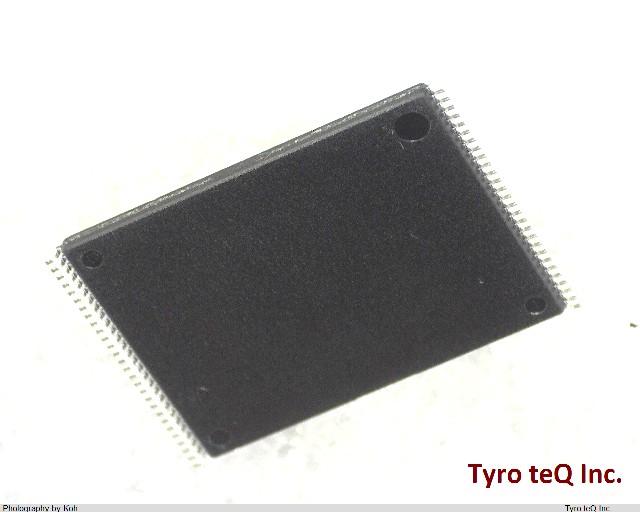

MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • MX29GL512FHT2I-10Q
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

MX29GL512FHT2I-10Q の詳細情報

  • 仕様・詳細
  • メーカー情報
型番MX29GL512FHT2I-10Q
メーカーMACRONIX
Access Time-Max (ns) 100
Alternate Memory Width 8
Command User Interface YES
Common Flash Interface YES
DLA Qualification Not Qualified
Data Polling YES
J-STD-609 Code e3
JESD-30 Code R-PDSO-G56
Length (mm) 18.4
Memory Density (bits) 536870912
Memory IC Type FLASH
Memory Organization 32MX16
Memory Width 16
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 512
Number of Terminals 56
Number of Words (words) 33554432
Number of Words Code 32M
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP56,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE Meter
Page Size (words) 8/16
Parallel/Serial PARALLEL
Power Supplies (V) 3/3.3
Programming Voltage (V) 3
Ready/Busy YES
Seated Height-Max (mm) 1.2
Sector Size (words) 128K
Standby Current-Max (A) 2.0E-5
Sub Category Flash Memories
Supply Current-Max (mA) 30
Supply Voltage-Max (V) 3.6
Supply Voltage-Min (V) 3
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch (mm) 0.5
Terminal Position DUAL
Toggle Bit YES
Type NOR TYPE
Width (mm) 14
会社名称Macronix International Co., Ltd.
設立 December 1989
資本金NT$33.8 Billion (as of 2011/12/31
所在地No.16, Li-Hsin Road, Science Park, Hsin-chu, Taiwan, R.O.C.
URLhttp://www.macronix.com/
