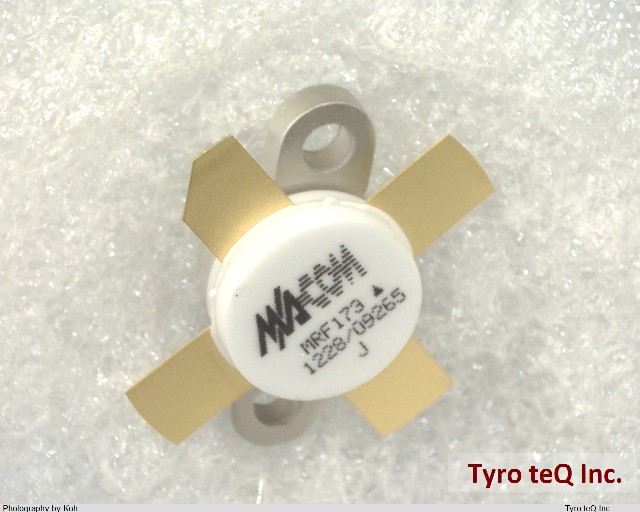

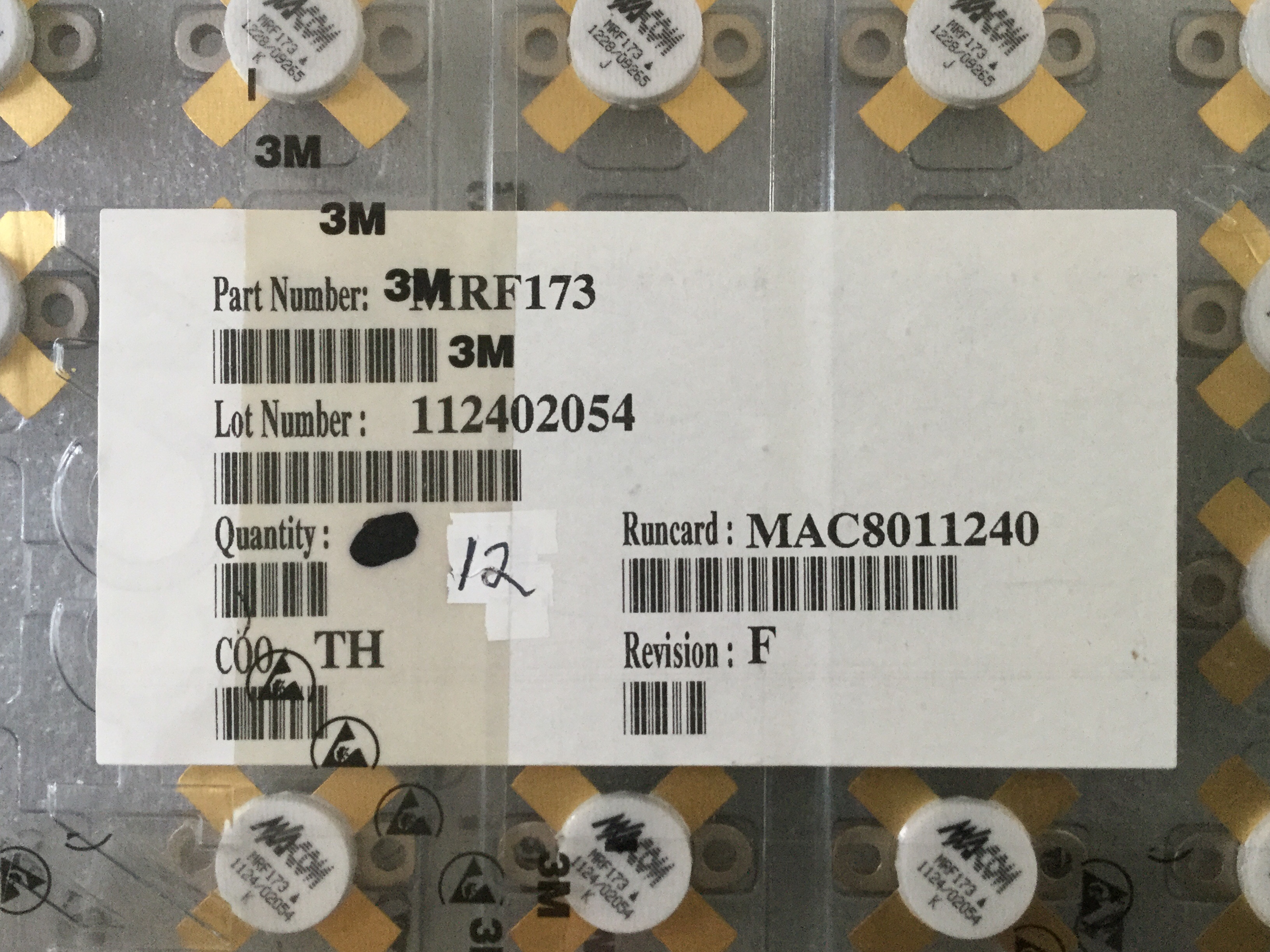

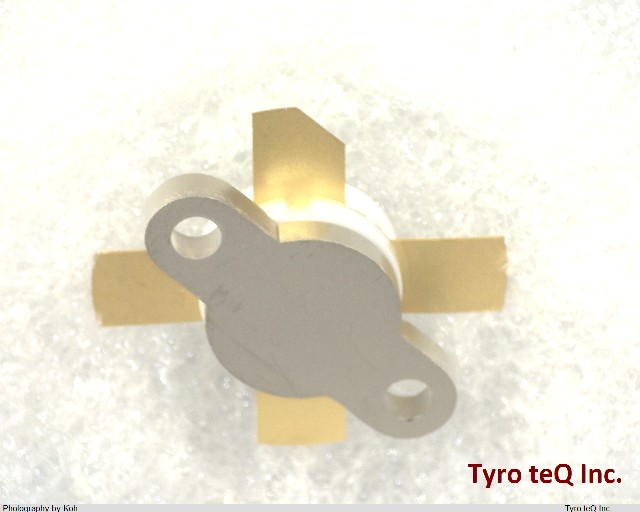

MRF173
1
-
- 個
２営業日以内に回答いたします
MRF173 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | MRF173 |
|---|---|
| メーカー | M/A-COM |
| Configuration | SINGLE |
| DS Breakdown Voltage-Min | 65 V |
| Drain Current-Max (Abs) (ID) | 9 A |
| Drain Current-Max (ID) | 9 A |
| Drain-source On Resistance-Max | 0.4667 ohm |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Highest Frequency Band | VERY HIGH FREQUENCY BAND |
| JESD-30 Code | O-CRFM-F4 |
| Number of Elements | 1 |
| Number of Terminals | 4 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 Cel |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Shape | ROUND |
| Package Style | FLANGE MOUNT Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 220 W |
| Power Dissipation-Max (Abs) | 220 W |
| Power Gain-Min (Gp) | 11 dB |
| Qualification Status | Not Qualified |
| Sub Category | FET General Purpose Power |
| Surface Mount | NO |
| Terminal Form | FLAT |
| Terminal Position | RADIAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| 会社名称 | M/A-COM Technology Solutions Inc. |
|---|---|
| 所在地 | 100 Chelmsford Street Lowell, Massachusetts 01851 USA |
| URL | http://www.macomtech.com/ |
MRF173のレビュー
MRF173 のご注文について
050-3612-7934
045-263-9989
MRF173 - M/A-COM の商品詳細ページです。
