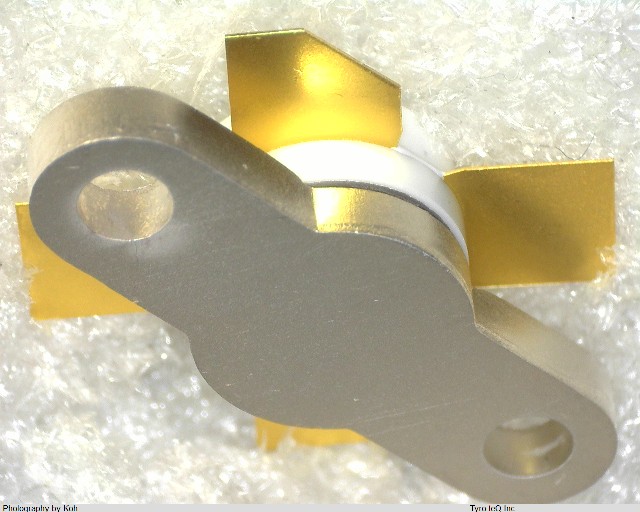

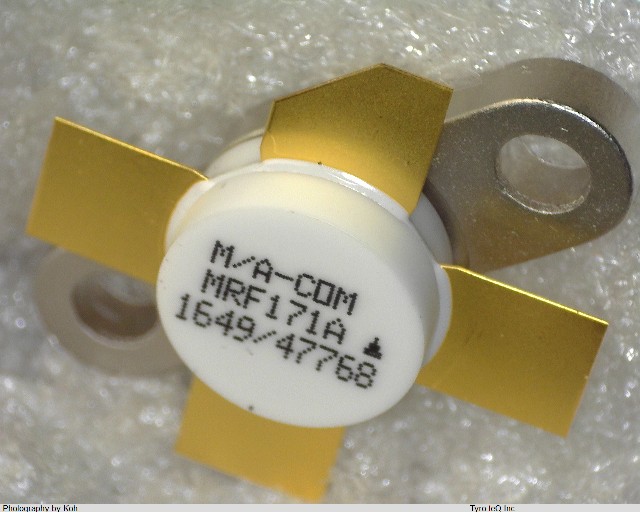

MRF171A

Name: MRF171A
Brand: M/A-COM
SKU: 230753657-0000-0000-0000

MRF171A - M/A-COM の商品詳細ページです。

２営業日以内に回答いたします

MRF171A の詳細情報

型番	MRF171A
メーカー	M/A-COM
Configuration	SINGLE
DS Breakdown Voltage-Min	65 V
Drain Current-Max (Abs) (ID)	4.5 A
Drain Current-Max (ID)	4.5 A
FET Technology	METAL-OXIDE SEMICONDUCTOR
Highest Frequency Band	VERY HIGH FREQUENCY BAND
JESD-30 Code	O-CRFM-F4
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	4
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	200 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Shape	ROUND
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	115 W
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	FLAT
Terminal Position	RADIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON

会社名称	M/A-COM Technology Solutions Inc.
所在地	100 Chelmsford Street Lowell, Massachusetts 01851 USA
URL	http://www.macomtech.com/
