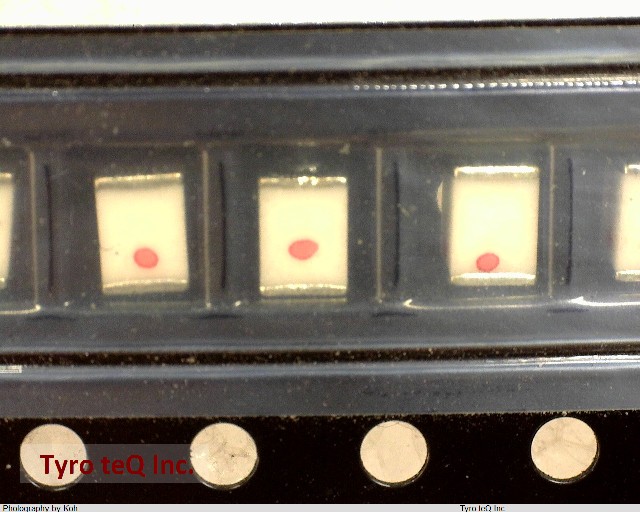

MA4P7104F-1072T

Name: MA4P7104F-1072T
Brand: M/A-COM
SKU: 400057832-0000-0000-0000

MA4P7104F-1072T - M/A-COM の商品詳細ページです。

２営業日以内に回答いたします

MA4P7104F-1072T の詳細情報

型番	MA4P7104F-1072T
メーカー	M/A-COM
Additional Feature	LOW DISTORTION
Application	ATTENUATOR; SWITCHING
Breakdown Voltage-Min	400 V
Breakdown Voltage-Min (V)	400
Case Connection	ISOLATED
Configuration	SINGLE
DLA Qualification	Not Qualified
Diode Capacitance-Max	1 pF
Diode Capacitance-Max (pF)	1
Diode Capacitance-Nom	1 pF
Diode Capacitance-Nom (pF)	1
Diode Element Material	SILICON
Diode Forward Resistance-Max	0.5 ohm
Diode Forward Resistance-Max (ohm)	0.5
Diode Res Test Current	100 mA
Diode Res Test Current (mA)	100
Diode Res Test Frequency	100 MHz
Diode Res Test Frequency (MHz)	100
Diode Type	PIN DIODE
Frequency Band	HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 Code	O-CELF-R2
JESD-609 Code	e3
Minority Carrier Lifetime-Nom	2.5 us
Minority Carrier Lifetime-Nom (us)	2.5
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	175 Cel
Operating Temperature-Max (Cel)	175
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Shape	RECTANGULAR
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Dissipation-Max	3 W
Power Dissipation-Max (W)	3
Qualification Status	Not Qualified
Reverse Test Voltage	100 V
Reverse Test Voltage (V)	100
Sub Category	PIN Diodes
Surface Mount	YES
Technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal Finish	TIN
Terminal Form	WRAP AROUND
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
