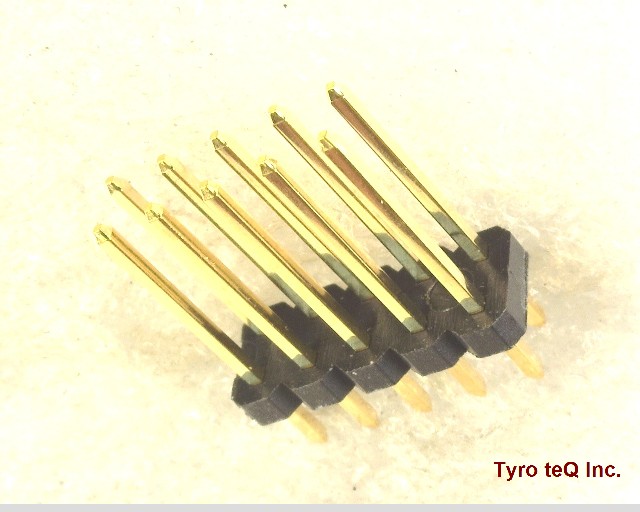

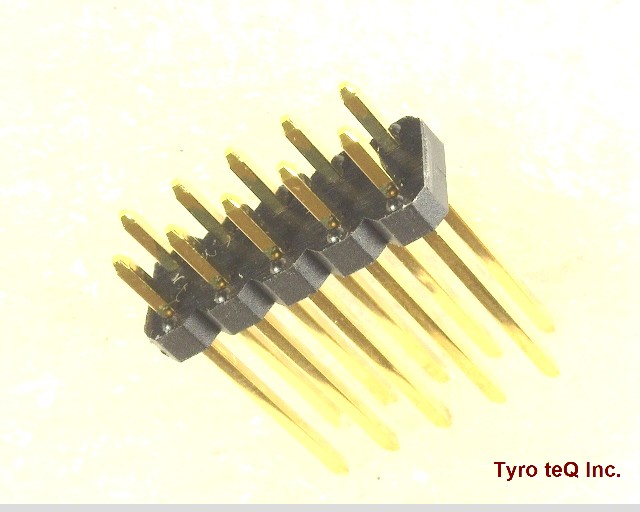

WLW-10-5PW

Name: WLW-10-5PW
Brand: MAC8
SKU: 400095755-0000-0000-0000

WLW-10-5PW - MAC8 の商品詳細ページです。

２営業日以内に回答いたします

WLW-10-5PW の詳細情報

型番	WLW-10-5PW
メーカー	MAC8
Body Breadth	0.197 inch
Body Depth	0.067 inch
Body Length	0.5 inch
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1000AC/DC V
Filter Feature	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
