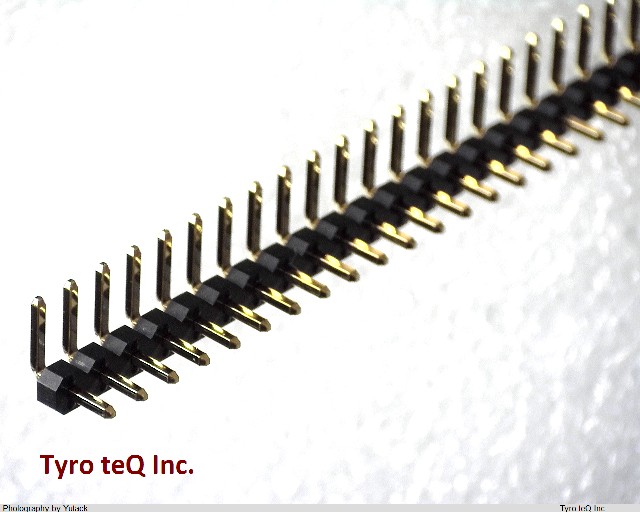

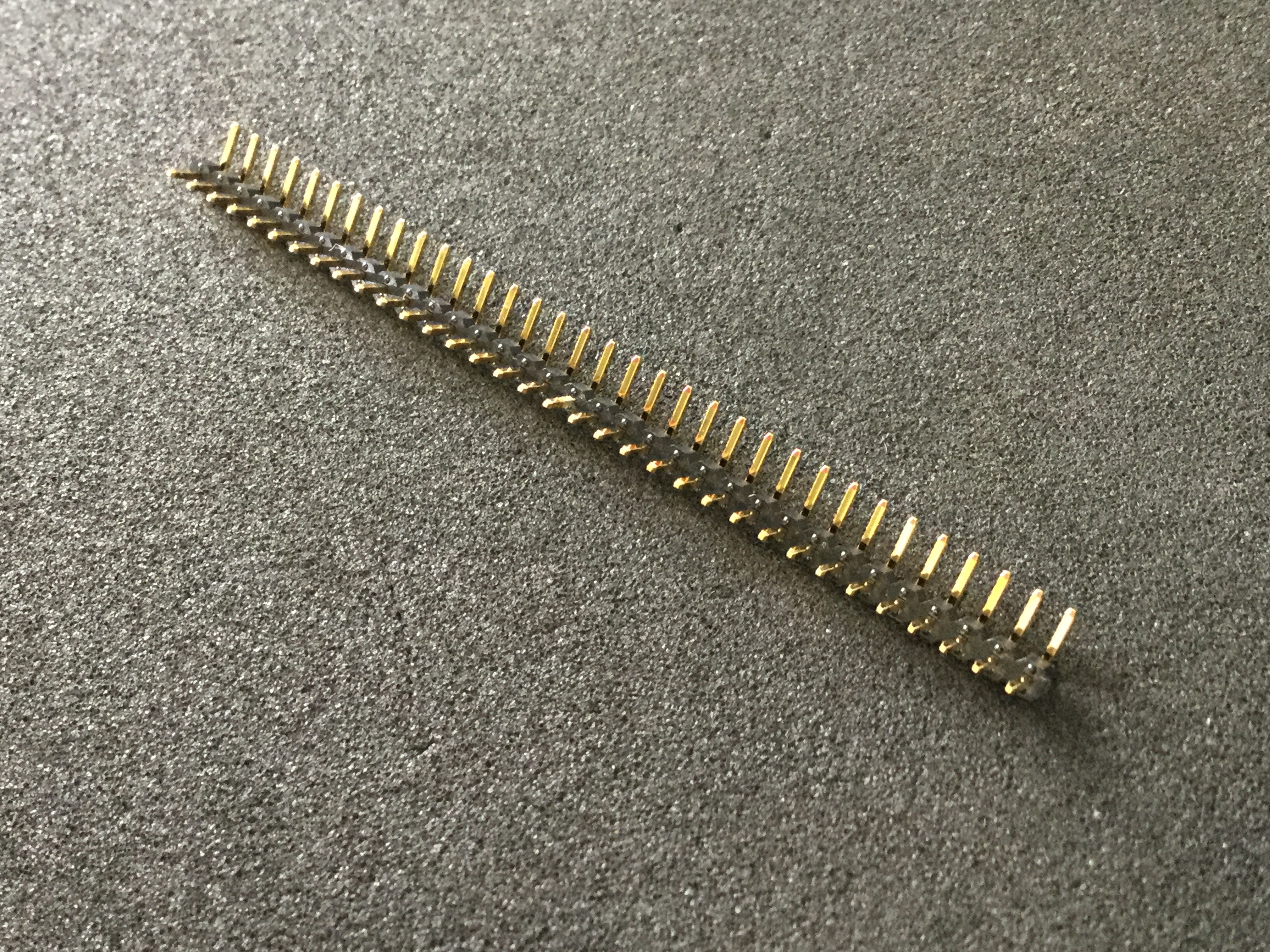

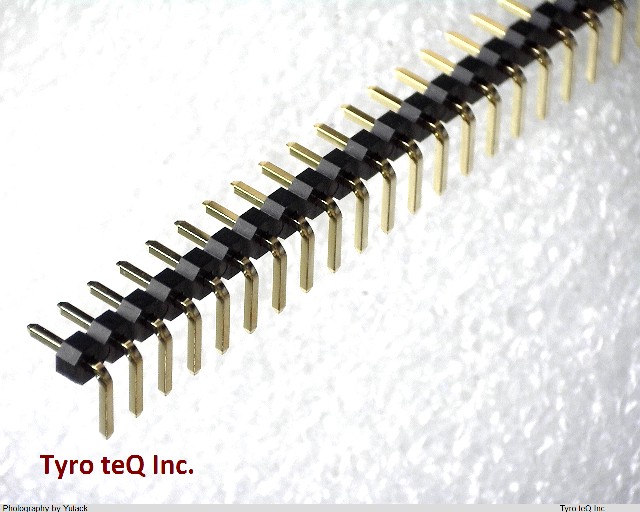

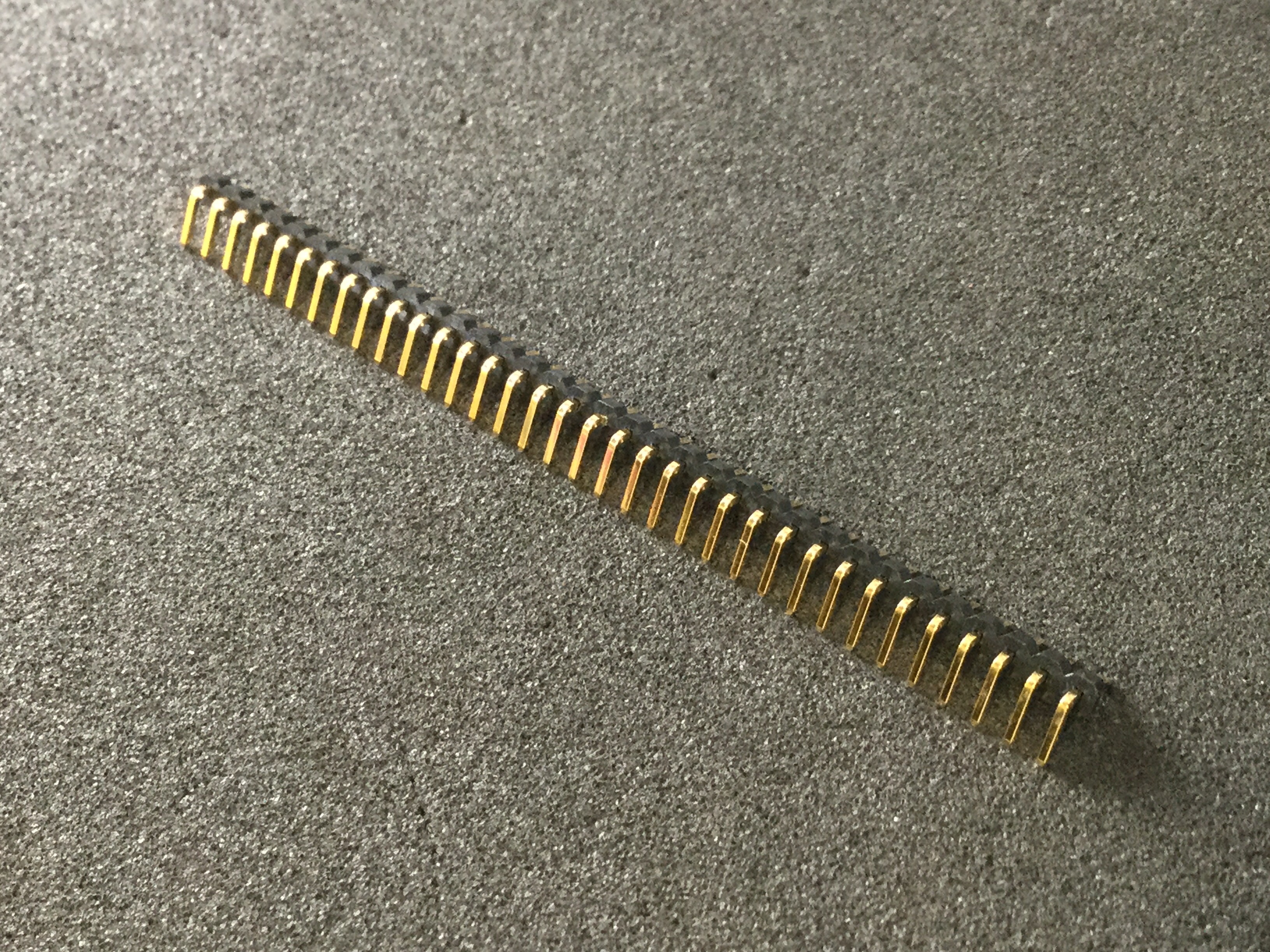

WLA-1-1

Name: WLA-1-1
Brand: MAC8
SKU: 330043697-0000-0000-0000

WLA-1-1 - MAC8 の商品詳細ページです。

２営業日以内に回答いたします

WLA-1-1 の詳細情報

型番	WLA-1-1
メーカー	MAC8
Additional Feature	DWV: 1000VDC
Body Breadth	0.098 inch
Body Depth	0.117 inch
Body Length	1 inch
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	3 A
Reference Standard	UL
Terminal Length	0.148 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
