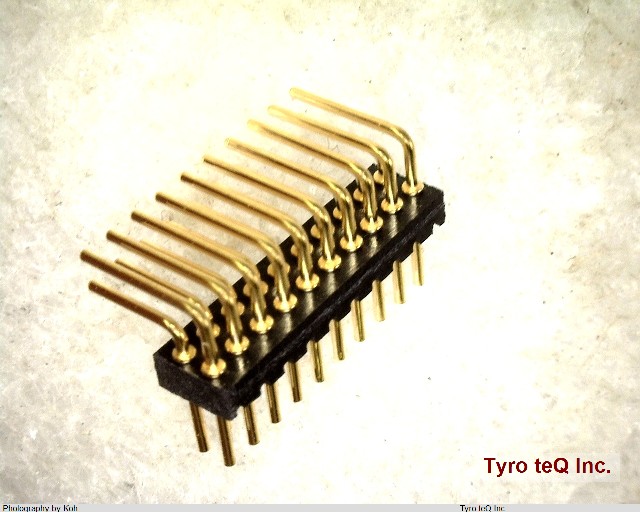

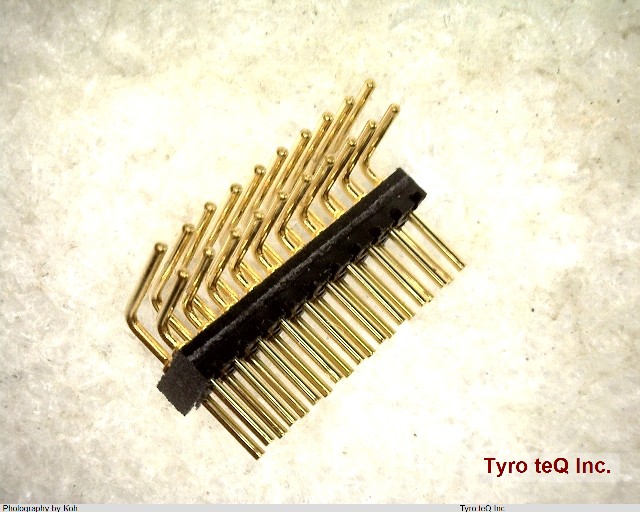

MZW-1-2-10PW データシート

Name: MZW-1-2-10PW
Brand: MAC8
SKU: 230686955-0000-0000-0000

MZW-1-2-10PW - MAC8 の商品詳細ページです。

２営業日以内に回答いたします

MZW-1-2-10PW の詳細情報

型番	MZW-1-2-10PW
メーカー	MAC8
データシート
Additional Feature	DWV: 1000VDC
Body Breadth	0.129 inch
Body Depth	0.159 inch
Body Length	0.5 inch
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Filter Feature	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	POLY CYCLOHEXYLENEDIMETHYLENE TEREPHTHALATE
Mating Contact Pitch	0.05 inch
Mating Contact Row Spacing	0.05 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	1.27 mm
Rated Current (Signal)	2 A
Reference Standard	UL
Terminal Length	0.118 inch
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	20
UL Flammability Code	94V-0
