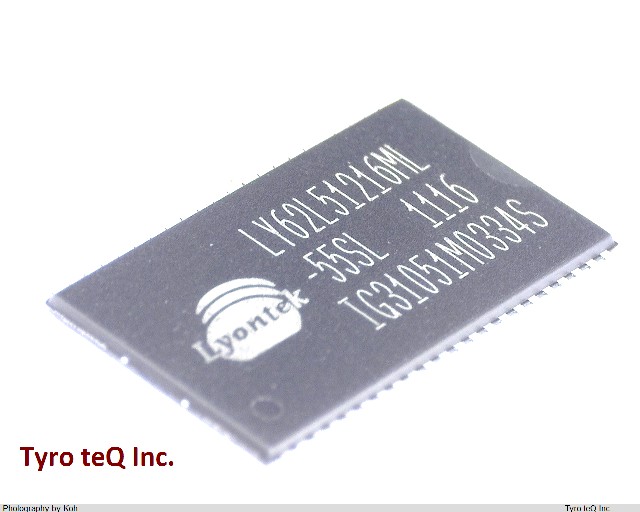

LY62L51216ML-55SLI

Name: LY62L51216ML-55SLI
Brand: LYONTEK
SKU: 220137393-0000-0000-0000

LY62L51216ML-55SLI - LYONTEK の商品詳細ページです。

２営業日以内に回答いたします

LY62L51216ML-55SLI の詳細情報

型番	LY62L51216ML-55SLI
メーカー	LYONTEK
Access Time-Max	55 ns
Access Time-Max (ns)	55
DLA Qualification	Not Qualified
I/O Type	COMMON
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G44
JESD-609 Code	e3
Length	18.415 mm
Length (mm)	18.415
Memory Density	8388608 bit
Memory Density (bits)	8388608
Memory IC Type	STANDARD SRAM
Memory Organization	512KX16
Memory Width	16
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	44
Number of Words	524288 words
Number of Words (words)	524288
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Organization	512KX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP44,.46,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3/3.3
Seated Height-Max	1.2 mm
Seated Height-Max (mm)	1.2
Standby Current-Max (A)	2.0E-5
Standby Voltage-Min (V)	1.2
Sub Category	SRAMs
Supply Current-Max (mA)	40
Supply Voltage-Max (V)	3.6
Supply Voltage-Max (Vsup)	3.6 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin (Sn)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30

会社名称	Lyontek Inc.
設立	2003
所在地	5F,No. 2,lndustry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan, R.O.C.
URL	http://www.lyontek.com.tw/
