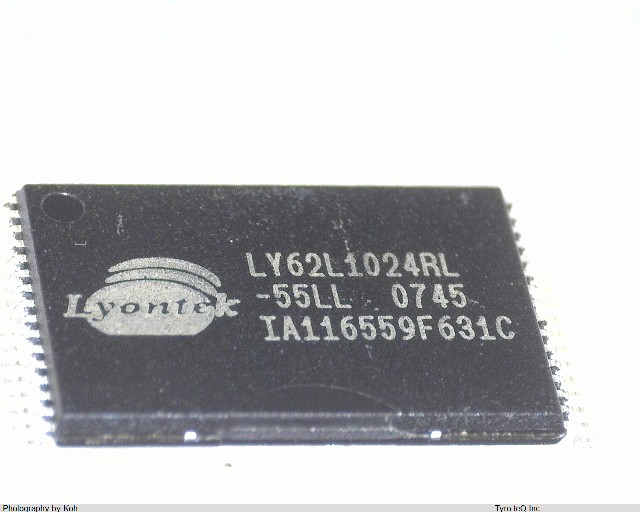

LY62L1024RL-55LLI

Name: LY62L1024RL-55LLI
Brand: LYONTEK
SKU: 220130969-0000-0000-0000

LY62L1024RL-55LLI - LYONTEK の商品詳細ページです。

２営業日以内に回答いたします

LY62L1024RL-55LLI の詳細情報

型番	LY62L1024RL-55LLI
メーカー	LYONTEK
Access Time-Max	55 ns
Access Time-Max (ns)	55
DLA Qualification	Not Qualified
I/O Type	COMMON
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G32
JESD-609 Code	e3
Length	11.8 mm
Length (mm)	11.8
Memory Density	1048576 bit
Memory Density (bits)	1048576
Memory IC Type	STANDARD SRAM
Memory Organization	128KX8
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	32
Number of Words	131072 words
Number of Words (words)	131072
Number of Words Code	128K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Organization	128KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSSOP32,.56,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3/3.3
Seated Height-Max	1.25 mm
Seated Height-Max (mm)	1.25
Standby Current-Max (A)	1.0E-5
Standby Voltage-Min (V)	1.5
Sub Category	SRAMs
Supply Current-Max (mA)	30
Supply Voltage-Max (V)	3.6
Supply Voltage-Max (Vsup)	3.6 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin (Sn)
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30

会社名称	Lyontek Inc.
設立	2003
所在地	5F,No. 2,lndustry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan, R.O.C.
URL	http://www.lyontek.com.tw/
