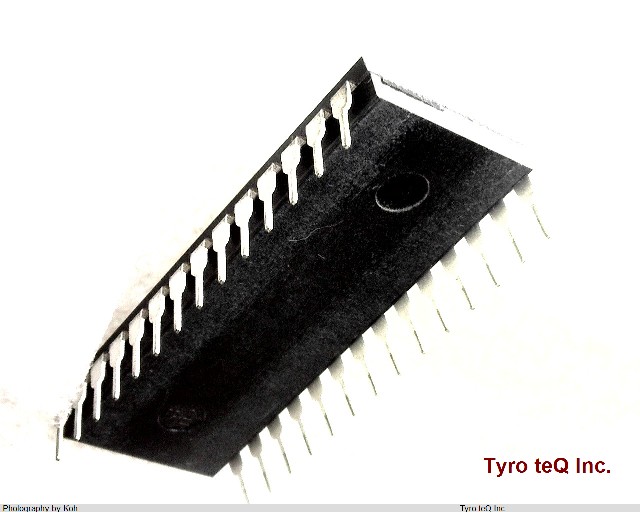

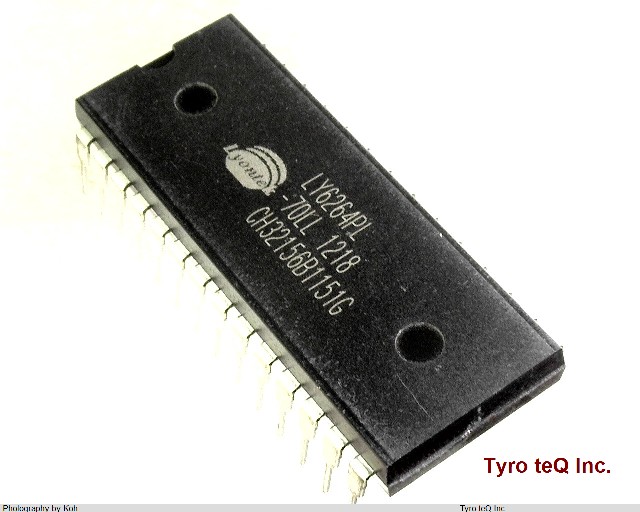

LY6264PL-70LL Lyontek

LY6264PL-70LL - LYONTEK の商品詳細ページです。

1

23時間2分後 以内に見積もり依頼を頂ければ、
04月30日(火) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

LY6264PL-70LL の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LY6264PL-70LL
メーカーLYONTEK
Access Time-Max (ns) 70
Additional Feature LG-MAX
J-STD-609 Code e3
JESD-30 Code R-PDIP-T28
Length (mm) 36.322
Memory Density (bits) 65536
Memory IC Type STANDARD SRAM
Memory Organization 8KX8
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 28
Number of Words (words) 8192
Number of Words Code 8K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 245
Seated Height-Max (mm) 3.937
Supply Current-Max (mA) 40
Supply Voltage-Max (V) 5.5
Supply Voltage-Min (V) 2.7
Supply Voltage-Nom (V) 3
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.54
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 15.24
会社名称Lyontek Inc.
設立2003
所在地5F,No. 2,lndustry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan, R.O.C.
URLhttp://www.lyontek.com.tw/
