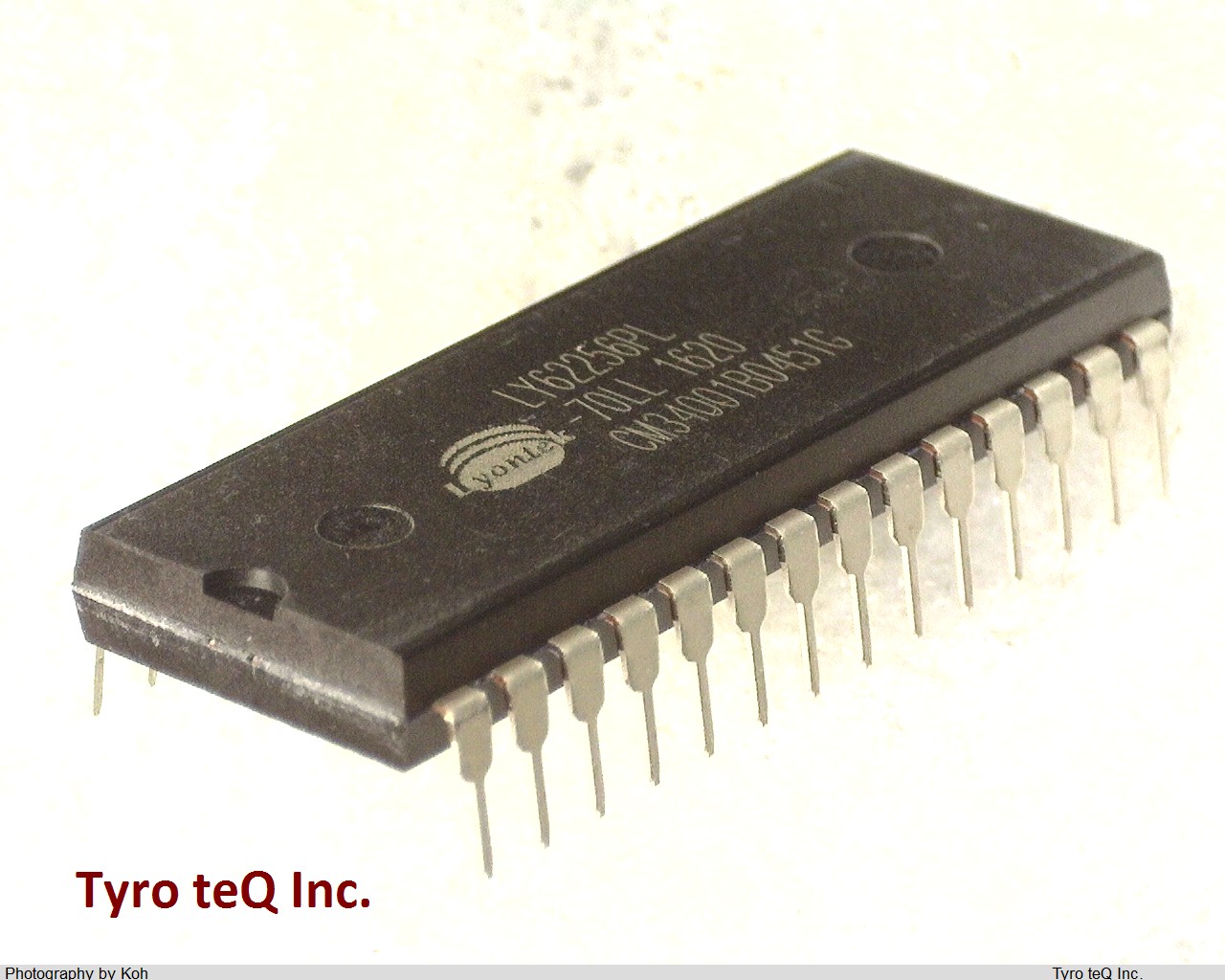

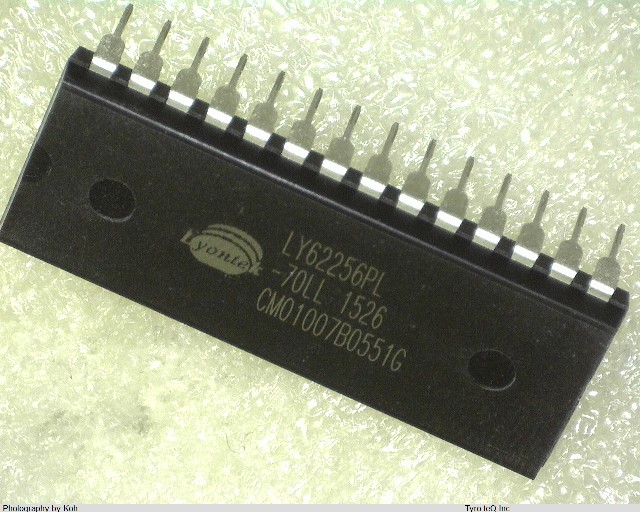

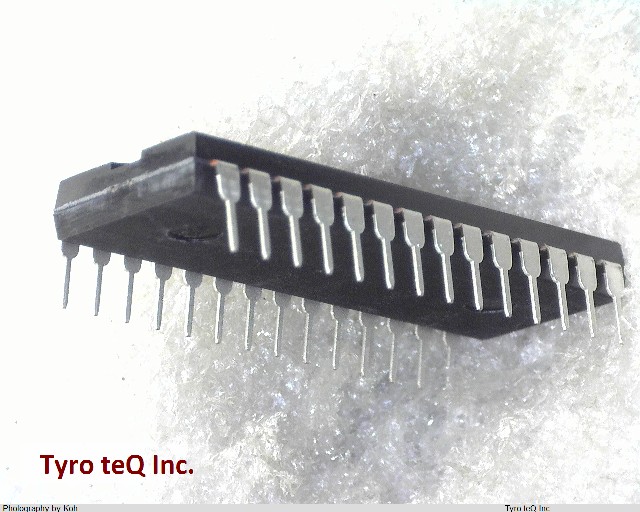

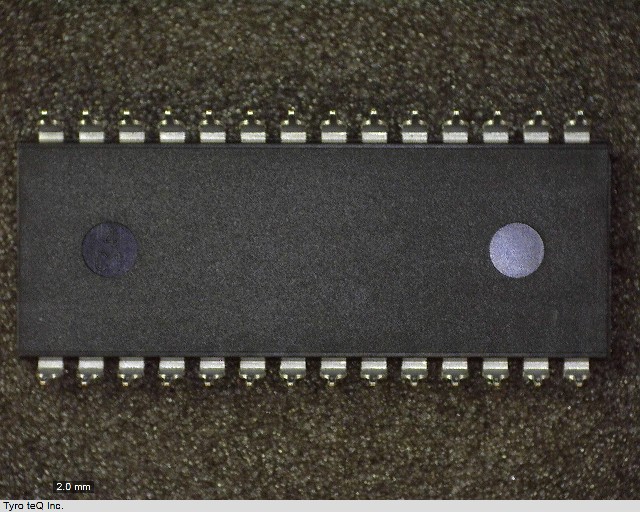

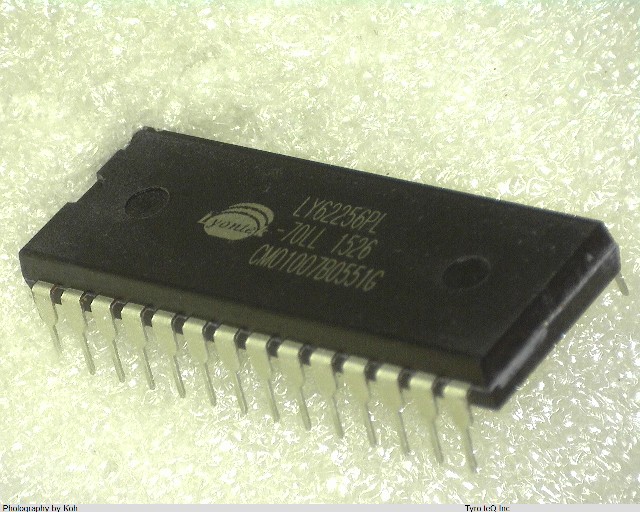

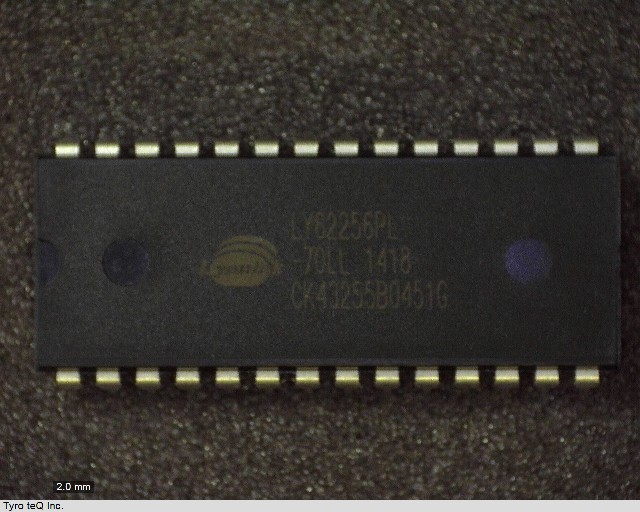

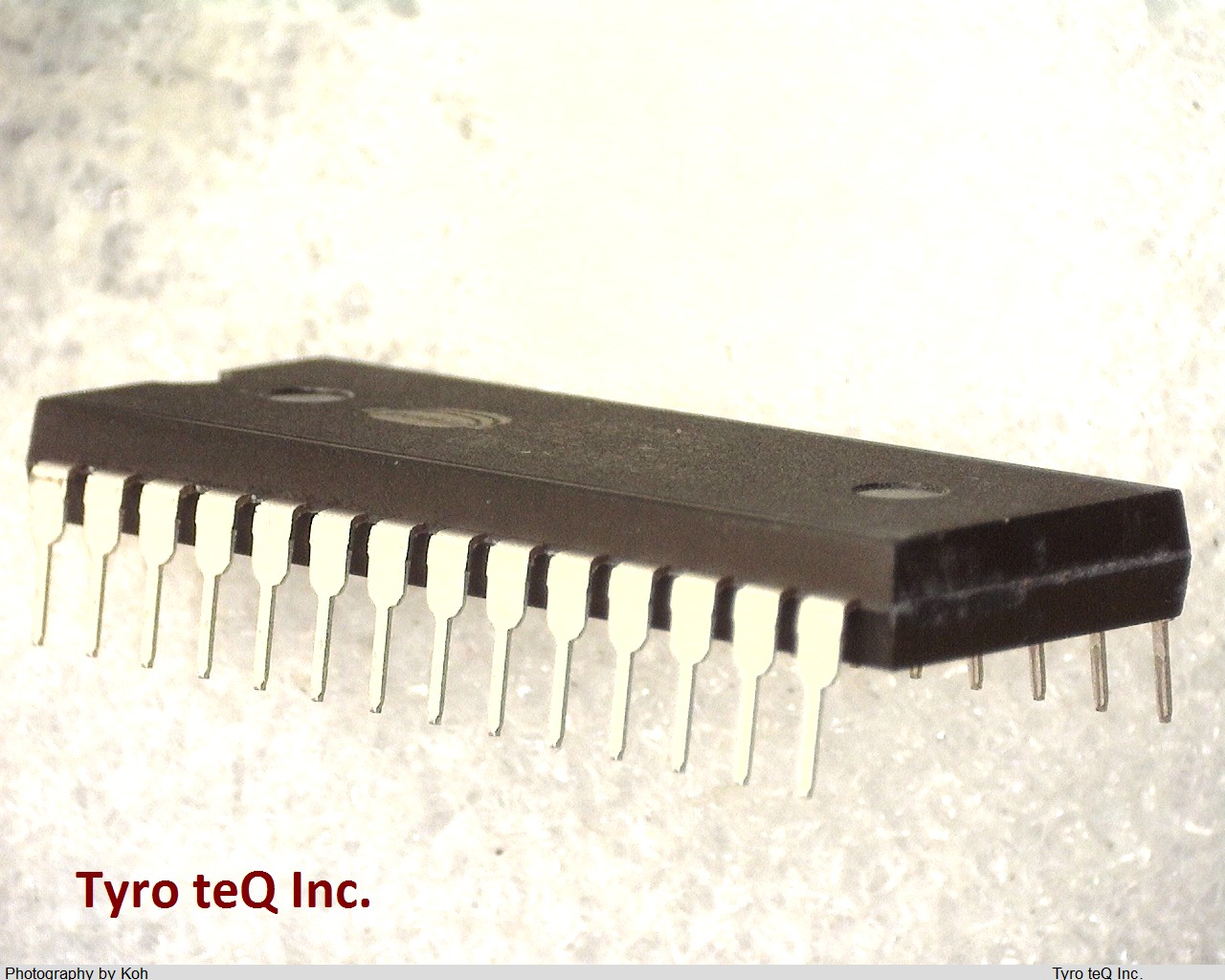

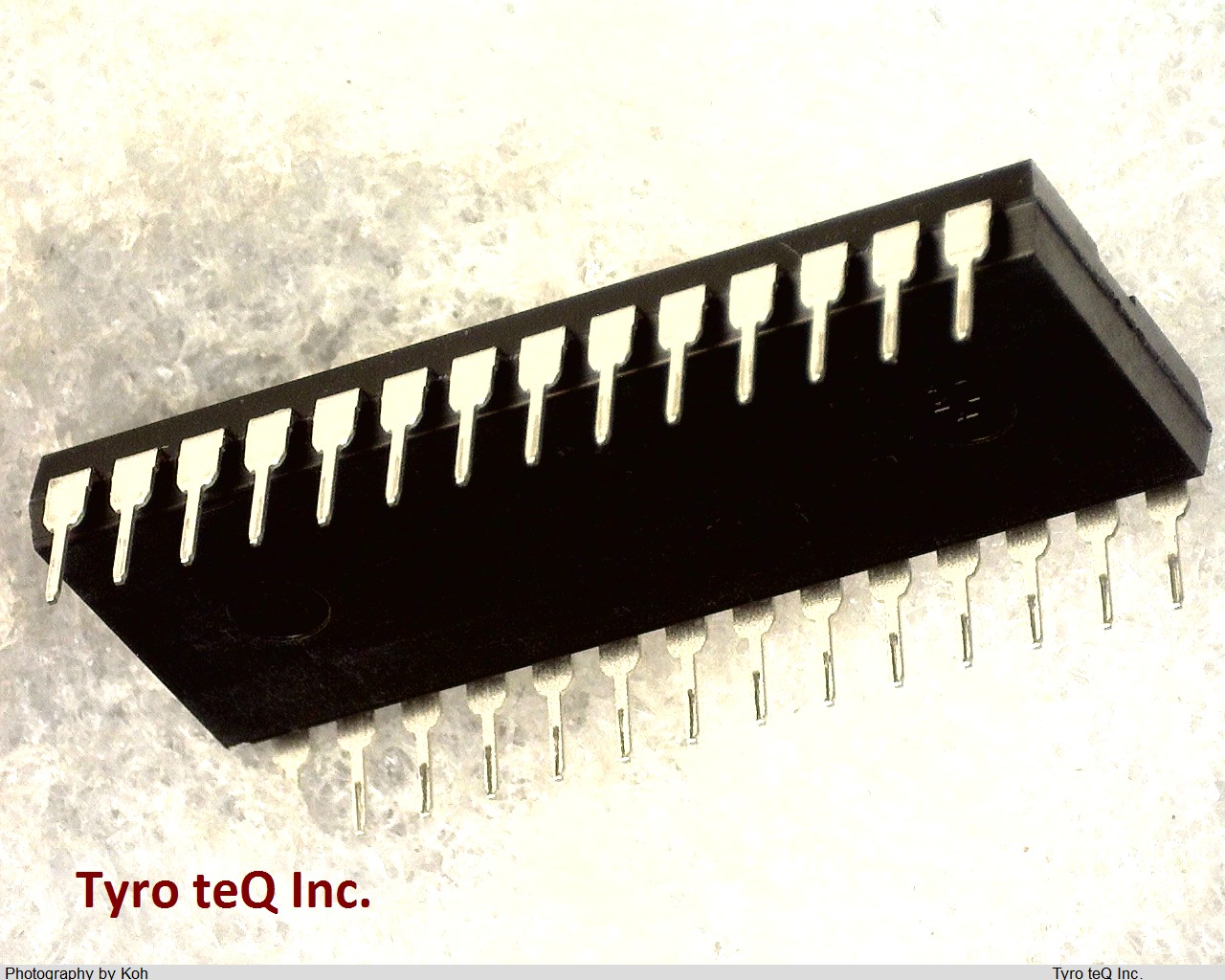

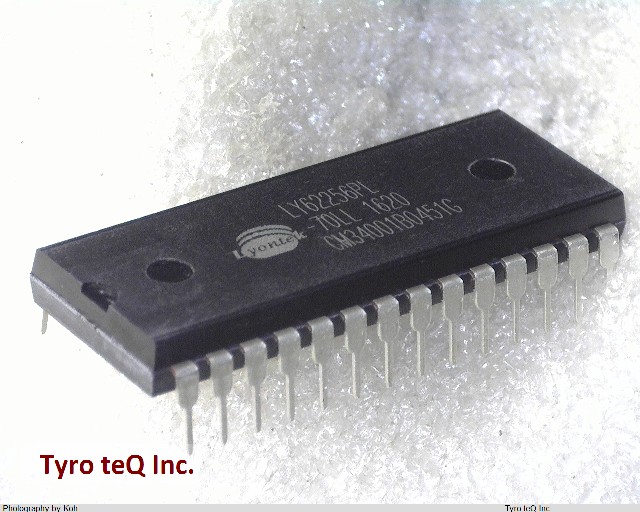

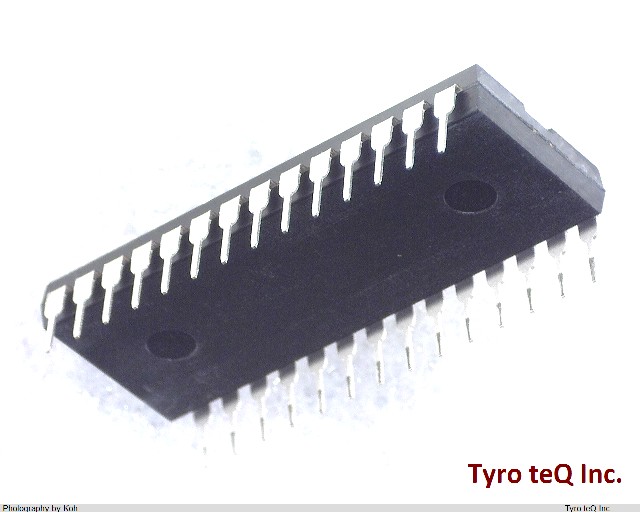

LY62256PL-70LL
1
-
- 個
２営業日以内に回答いたします
LY62256PL-70LL の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LY62256PL-70LL |
|---|---|
| メーカー | LYONTEK |
| Access Time-Max (ns) | 70 |
| Additional Feature | LG-MAX |
| J-STD-609 Code | e3 |
| JESD-30 Code | R-PDIP-T28 |
| Length (mm) | 37.338 |
| Memory Density (bits) | 262144 |
| Memory IC Type | STANDARD SRAM |
| Memory Organization | 32KX8 |
| Memory Width | 8 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words (words) | 32768 |
| Number of Words Code | 32K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | -40 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 245 |
| Seated Height-Max (mm) | 4.064 |
| Supply Current-Max (mA) | 40 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 2.7 |
| Supply Voltage-Nom (V) | 3.3 |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch (mm) | 2.54 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width (mm) | 15.24 |
| 会社名称 | Lyontek Inc. |
|---|---|
| 設立 | 2003 |
| 所在地 | 5F,No. 2,lndustry E. Rd. IX, Science-Based Industrial Park, Hsinchu 300, Taiwan, R.O.C. |
| URL | http://www.lyontek.com.tw/ |
