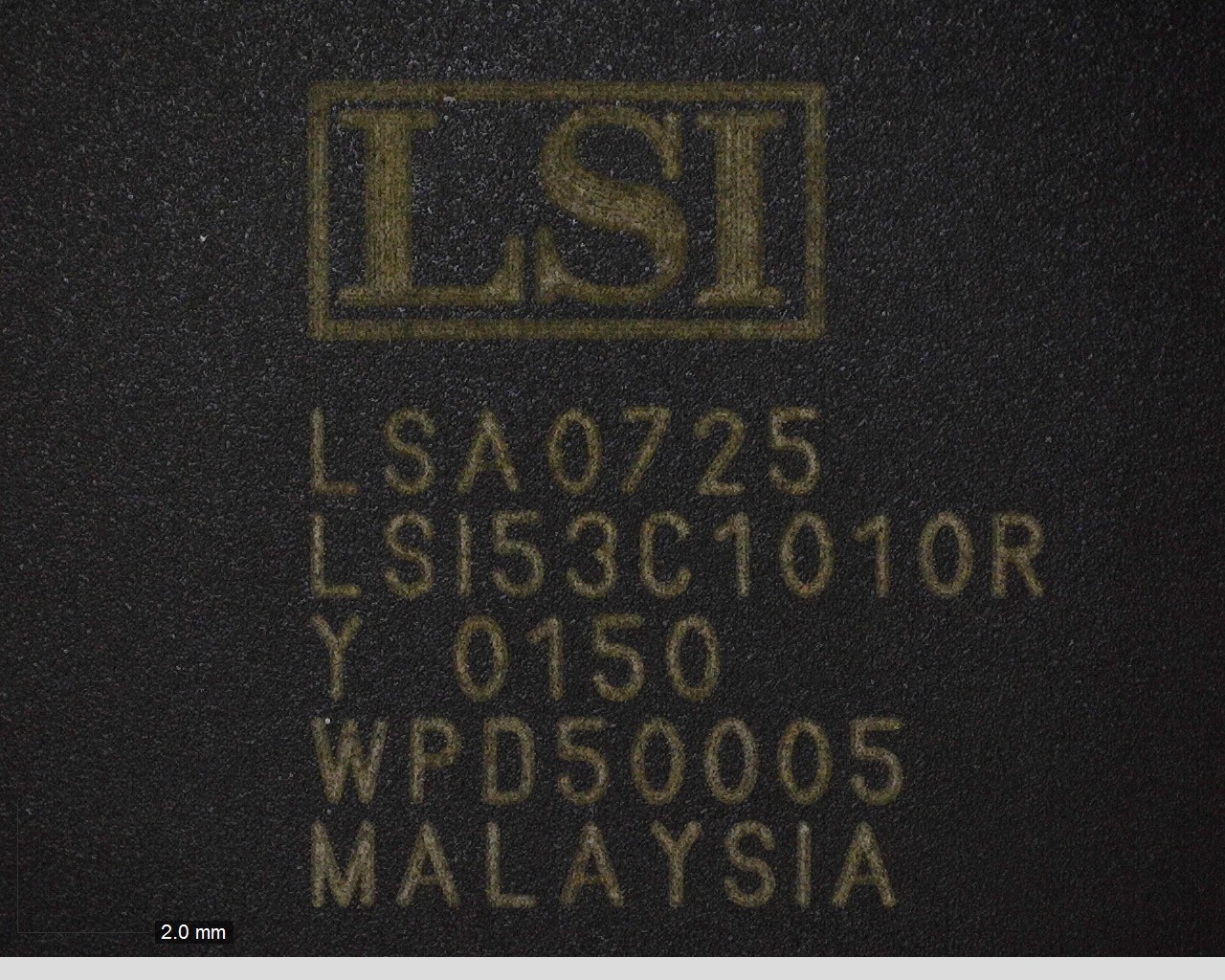

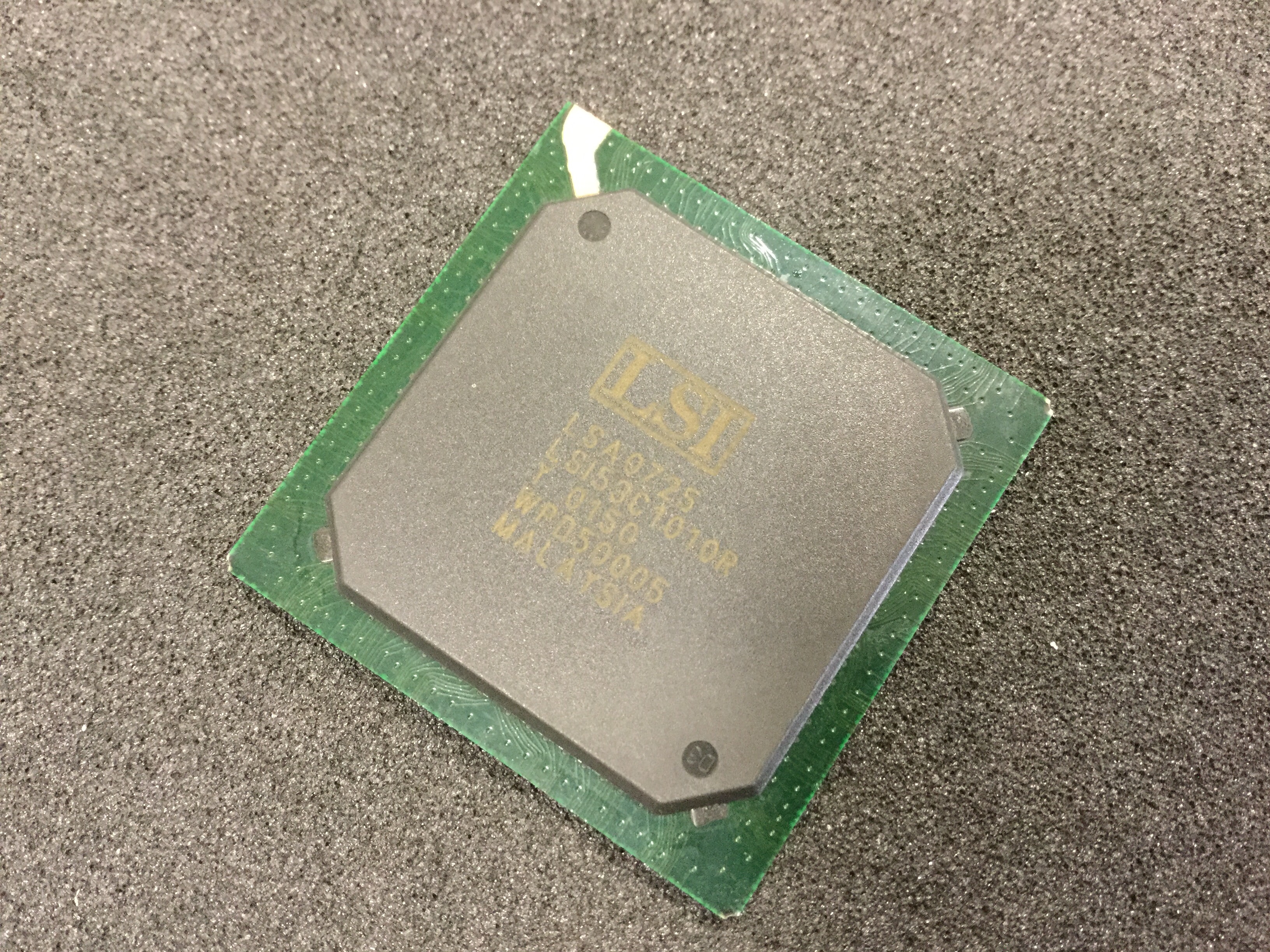

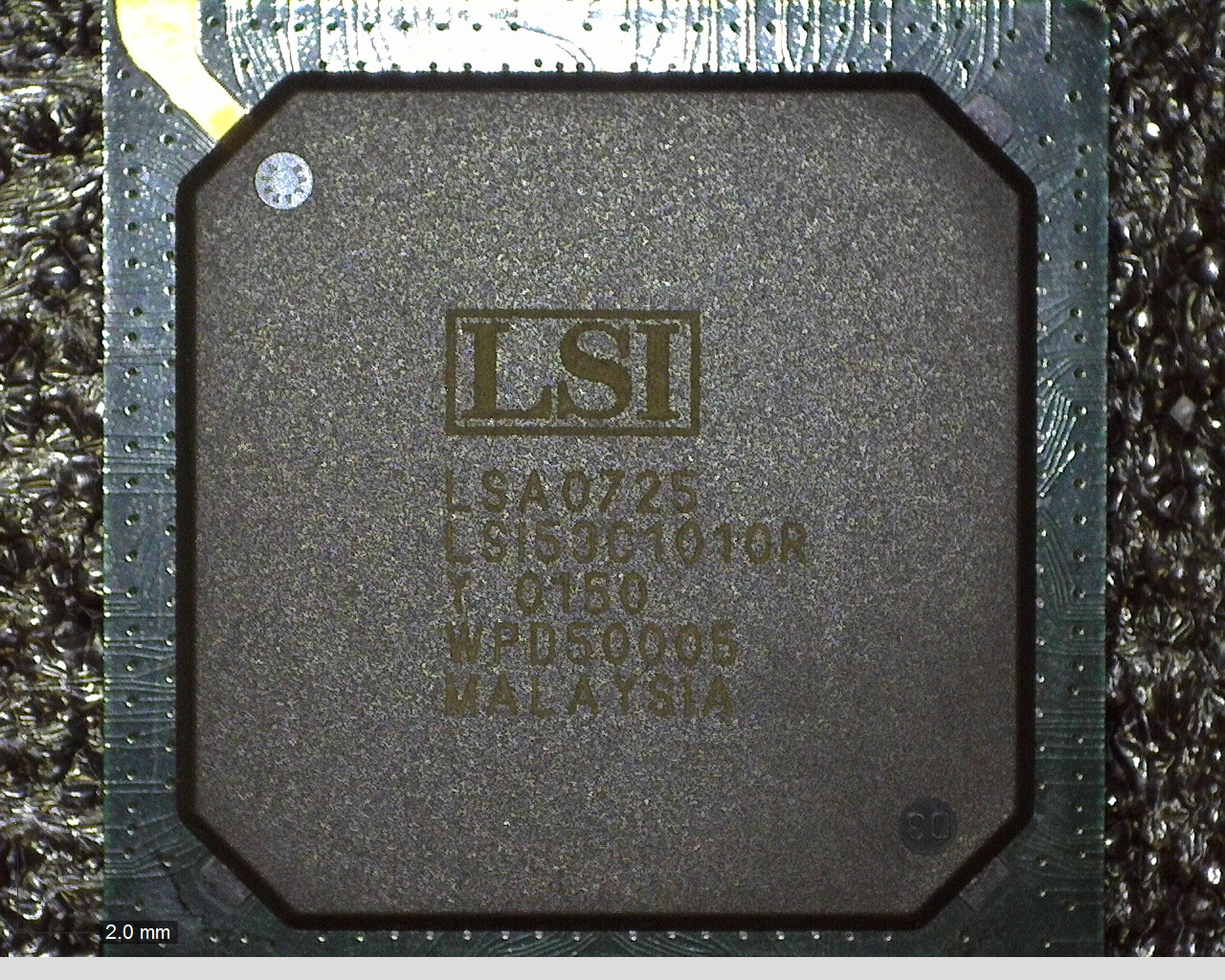

LSI53C1010R データシート

Name: LSI53C1010R
Brand: LSI LOGIC
SKU: 220007118-0000-0000-0000

LSI53C1010R - LSI LOGIC の商品詳細ページです。

２営業日以内に回答いたします

LSI53C1010R の詳細情報

型番	LSI53C1010R
メーカー	LSI LOGIC
データシート
Address Bus Width	64
Bus Compatibility	PCI
Clock Frequency-Max	40 MHz
Drive Interface Standard	IEEE 1149.1
External Data Bus Width	64
JESD-30 Code	S-PBGA-B456
JESD-609 Code	e0
Length	35 mm
Number of Terminals	456
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA456,26X26,50
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	225
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	2.5 mm
Sub Category	Bus Controllers
Supply Current-Max	800 mA
Supply Voltage-Max	3.47 V
Supply Voltage-Min	3.13 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	BALL
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	35 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, SCSI
