SP0503BAHTG データシート

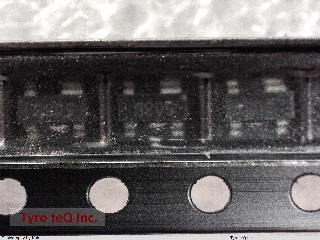

Name: SP0503BAHTG
Brand: LITTLEFUSE
SKU: 290125442-0000-0000-0000

SP0503BAHTG - LITTLEFUSE の商品詳細ページです。

２営業日以内に回答いたします

SP0503BAHTG の詳細情報

型番	SP0503BAHTG
メーカー	LITTLEFUSE
データシート
Additional Feature	LOW CAPACITANCE
Clamping Voltage-Max	6.8 V
Configuration	COMMON ANODE, 3 ELEMENTS
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code	TO-253AA
JESD-30 Code	R-PDSO-G4
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	3
Number of Terminals	4
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	0.225 W
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	5.5 V
Sub Category	Transient Suppressors
Surface Mount	YES
Technology	AVALANCHE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40

会社名称	Littelfuse, Inc.
設立	1927
所在地	8755 West Higgins Road Suite 500, Chicago, IL, 60631 USA,
URL	http://www.littelfuse.com/
