SMBJ440A Littlefuse

SMBJ440A - LITTLEFUSE の商品詳細ページです。

1

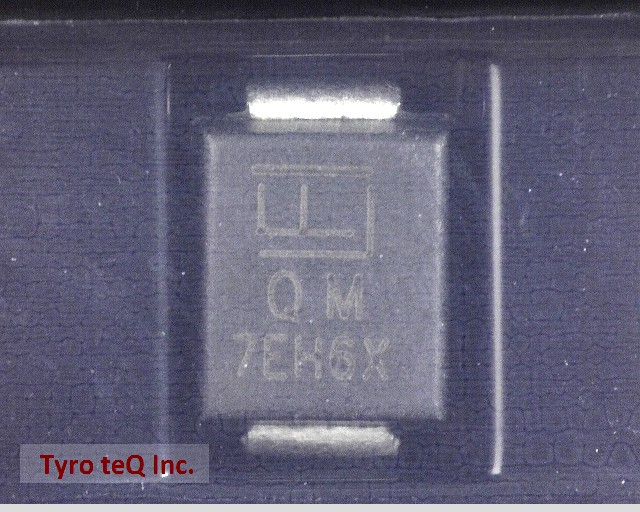

SMBJ440A
  • SMBJ440A
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

SMBJ440A の詳細情報

  • 仕様・詳細
  • メーカー情報
型番SMBJ440A
メーカーLITTLEFUSE
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 543 V
Breakdown Voltage-Max (V) 540
Breakdown Voltage-Min 492 V
Breakdown Voltage-Min (V) 489
Breakdown Voltage-Nom 517.5 V
Breakdown Voltage-Nom (V) 514.5
Clamping Voltage-Max 713 V
Clamping Voltage-Max (V) 711
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (V) 5
Forward Voltage-Max (VF) 5 V
J-STD-609 Code e3
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
JESD-609 Code e0
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 600 W
Non-rep Peak Rev Power Dis-Max (W) 600
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 125 Cel
Operating Temperature-Max (Cel) 150
Operating Temperature-Min -65 Cel
Operating Temperature-Min (Cel) -65
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 240
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Power Dissipation-Max (W) 5
Qualification Status Not Qualified
Reference Standard AEC-Q101; MIL-STD-750; UL CERTIFIED
Rep Pk Reverse Voltage-Max 440 V
Rep Pk Reverse Voltage-Max (V) 440
Reverse Current-Max 1 uA
Reverse Current-Max (uA) 1
Reverse Test Voltage 440 V
Reverse Test Voltage (V) 440
Screening Level / Reference Standard IATF 16949; IEC-61000-4-2, 4-4
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
会社名称Littelfuse, Inc.
設立1927
所在地8755 West Higgins Road Suite 500, Chicago, IL, 60631 USA,
URLhttp://www.littelfuse.com/
