SA12A Littlefuse

SA12A - LITTLEFUSE の商品詳細ページです。

1

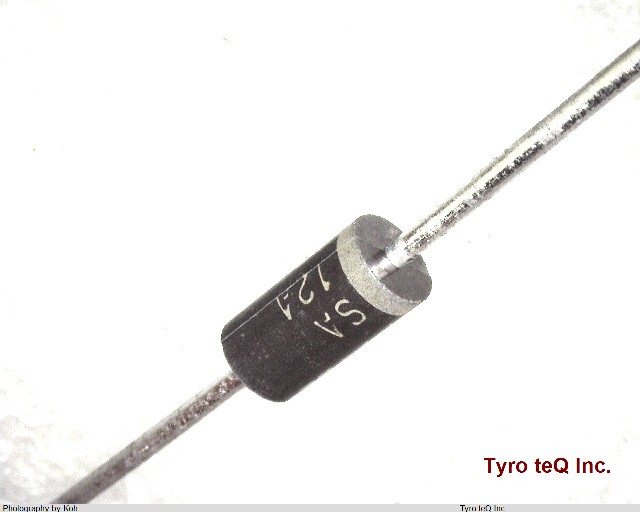

SA12A
  • SA12A
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

SA12A の詳細情報

  • 仕様・詳細
  • メーカー情報
型番SA12A
メーカーLITTLEFUSE
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 14.7 V
Breakdown Voltage-Max (V) 14.7
Breakdown Voltage-Min 13.3 V
Breakdown Voltage-Min (V) 13.3
Breakdown Voltage-Nom 14 V
Breakdown Voltage-Nom (V) 13.4
Case Connection ISOLATED
Clamping Voltage-Max 19.9 V
Clamping Voltage-Max (V) 19.9
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF) 3.5 V
J-STD-609 Code e0
JEDEC-95 Code DO-15
JESD-30 Code O-PALF-W2
JESD-609 Code e0
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 500 W
Non-rep Peak Rev Power Dis-Max (W) 500
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 Cel
Operating Temperature-Max (Cel) 150
Operating Temperature-Min -65 Cel
Operating Temperature-Min (Cel) -55
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM Meter
Peak Reflow Temperature (Cel) 240
Polarity UNIDIRECTIONAL
Power Dissipation-Max 1 W
Power Dissipation-Max (W) 1
Qualification Status Not Qualified
Reference Standard AEC-Q101
Rep Pk Reverse Voltage-Max 12 V
Rep Pk Reverse Voltage-Max (V) 12
Reverse Current-Max 1 uA
Reverse Current-Max (uA) 1
Reverse Test Voltage 12 V
Reverse Test Voltage (V) 12
Screening Level / Reference Standard IEC-61000-4-2; MIL-STD-750; UL CERTIFIED
Sub Category Transient Suppressors
Surface Mount NO
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 10
会社名称Littelfuse, Inc.
設立1927
所在地8755 West Higgins Road Suite 500, Chicago, IL, 60631 USA,
URLhttp://www.littelfuse.com/
