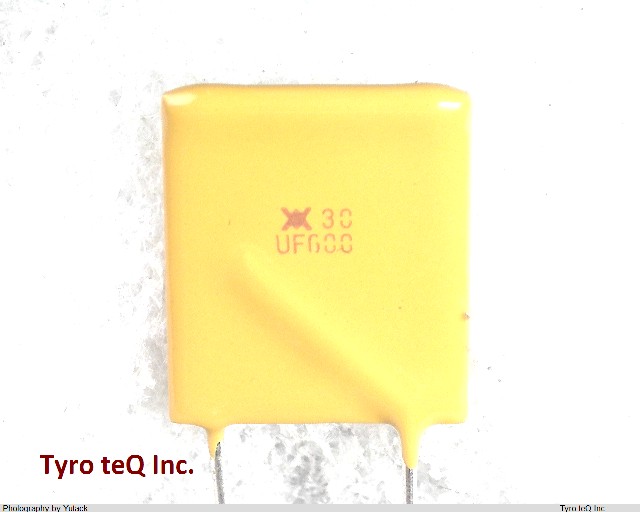

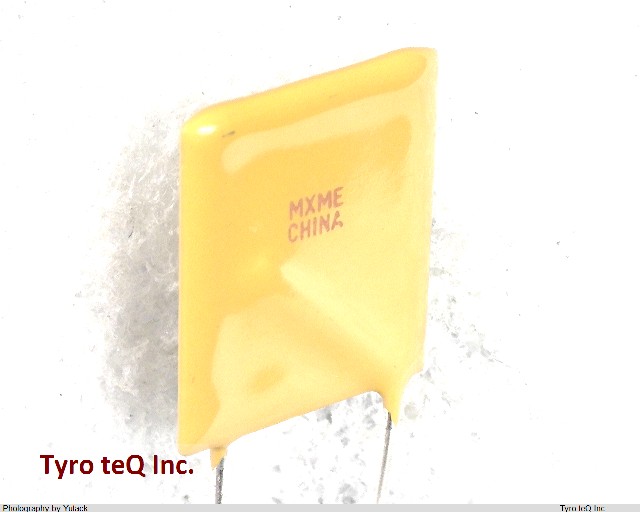

RUEF600 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | RUEF600 |
|---|---|
| メーカー | LITTLEFUSE |
| Additional Feature | RESISTANCE RANGE(MIN-MAX): 0.005-0.020 |
| Circuit DC Voltage-Max | 30 V |
| Circuit RMS Voltage-Max | 30 V |
| JESD-609 Code | e3 |
| Manufacturer Series | RUEF |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Height | 24.1 mm |
| Package Length | 16.5 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | Radial Meter |
| Package Width | 3 mm |
| Packing Method | AMMO PACK |
| Physical Dimension | 16.5mm x 3mm x 24.1mm |
| Rated AC Voltage (URac) | 30 V |
| Rated Power Dissipation (P) | 3.5 W |
| Reference Standard | CQC; CSA; TUV; UL |
| Resistance | 0.005 ohm |
| Resistor Type | PTC RESETTABLE FUSE |
| Sub Category | Non-linear Resistors |
| Terminal Finish | MATTE TIN |
| Terminal Placement | RADIAL |
| Terminal Shape | WIRE |
| Thermistor Application | OVERCURRENT PROTECTION |
| Working Voltage | 30 V |
| 会社名称 | Littelfuse, Inc. |
|---|---|
| 設立 | 1927 |
| 所在地 | 8755 West Higgins Road Suite 500, Chicago, IL, 60631 USA, |
| URL | http://www.littelfuse.com/ |
