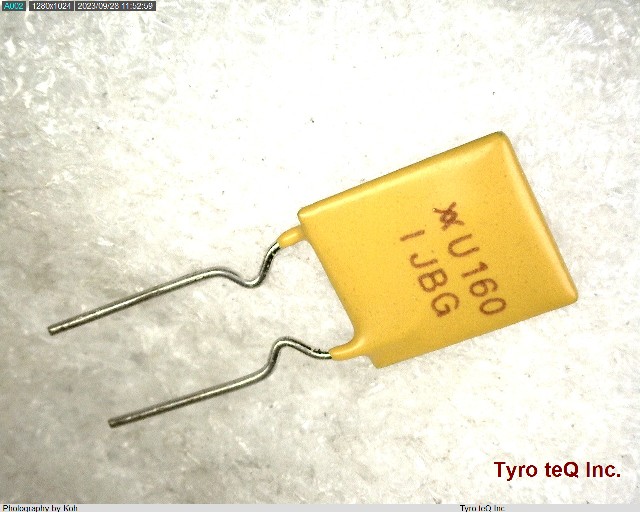

RUEF160

Name: RUEF160
Brand: LITTLEFUSE
SKU: 400067446-0000-0000-0000

RUEF160 - LITTLEFUSE の商品詳細ページです。

２営業日以内に回答いたします

RUEF160 の詳細情報

型番	RUEF160
メーカー	LITTLEFUSE
Additional Feature	RESISTANCE RANGE(MIN-MAX): 0.03-0.07
Application	TEMPERATURE SENSING
Circuit DC Voltage-Max	30 V
Circuit RMS Voltage-Max	30 V
J-STD-609 Code	e2
JESD-609 Code	e3
Manufacturer Series	RUEF
Mounting Feature	THROUGH HOLE MOUNT
Number of Terminals	2
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Height	14.4 mm
Package Length	8.9 mm
Package Shape	RECTANGULAR PACKAGE
Package Style	Radial Meter
Package Width	3 mm
Packing Method	AMMO PACK
Physical Dimension	8.9mm x 3mm x 14.4mm
Rated AC Voltage (URac)	30 V
Rated AC Voltage (URac) (V)	30
Rated Power Dissipation (P)	0.9 W
Rated Power Dissipation (P) (W)	0.9
Reference Standard	CQC; CSA; TUV; UL
Resistance	0.03 ohm
Resistor Type	PTC RESETTABLE FUSE
Sub Category	Non-linear Resistors
Terminal Finish	MATTE TIN COPPER
Terminal Placement	RADIAL
Terminal Shape	WIRE
Thermistor Application	OVERCURRENT PROTECTION
Working Voltage	30 V
