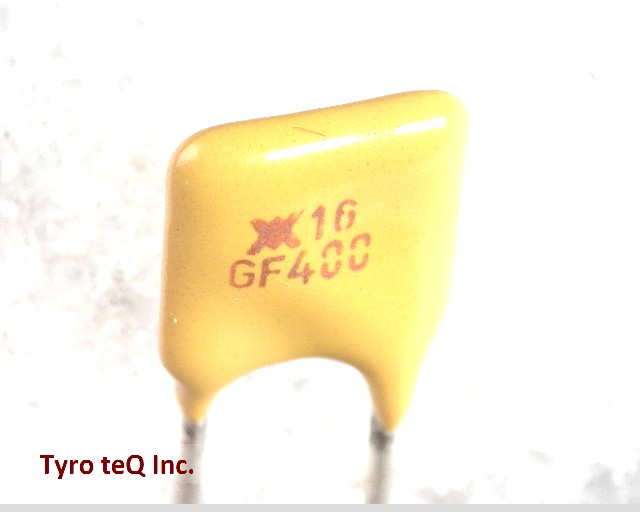

RGEF400
1
-
- 個
２営業日以内に回答いたします
RGEF400 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | RGEF400 |
|---|---|
| メーカー | LITTLEFUSE |
| Additional Feature | 0.021-0.039 OHMS AT 20 DEG CEL |
| Circuit DC Voltage-Max | 16 V |
| JESD-609 Code | e2 |
| Manufacturer Series | RGEF |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Height | 12.8 mm |
| Package Length | 8.9 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | Radial Meter |
| Package Width | 3 mm |
| Packing Method | AMMO PACK |
| Physical Dimension | 8.9mm x 3mm x 12.8mm |
| Rated AC Voltage (URac) | 16 V |
| Rated Power Dissipation (P) | 2.4 W |
| Rated Temperature | 25 Cel |
| Reference Standard | CSA, TUV, UL |
| Resistance | 0.021 ohm |
| Resistor Type | PTC RESETTABLE FUSE |
| Sub Category | Non-linear Resistors |
| Terminal Finish | Matte Tin/Copper (Sn/Cu) |
| Terminal Placement | RADIAL |
| Terminal Shape | WIRE |
| Thermistor Application | OVERCURRENT PROTECTION |
| Working Voltage | 16 V |
| 会社名称 | Littelfuse, Inc. |
|---|---|
| 設立 | 1927 |
| 所在地 | 8755 West Higgins Road Suite 500, Chicago, IL, 60631 USA, |
| URL | http://www.littelfuse.com/ |
RGEF400のレビュー
RGEF400 のご注文について
050-3612-7934
045-263-9989
RGEF400 - LITTLEFUSE の商品詳細ページです。
