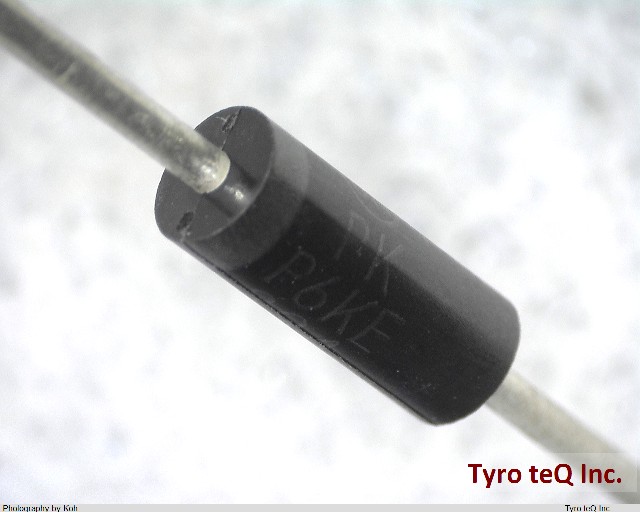

P6KE39AG

Name: P6KE39AG
Brand: LITTLEFUSE
SKU: 260240367-0000-0000-0000

P6KE39AG - LITTLEFUSE の商品詳細ページです。

２営業日以内に回答いたします

P6KE39AG の詳細情報

型番	P6KE39AG
メーカー	LITTLEFUSE
Additional Feature	EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY
Breakdown Voltage-Max	40.95 V
Breakdown Voltage-Min	37.05 V
Breakdown Voltage-Nom	39 V
Case Connection	ISOLATED
Clamping Voltage-Max	53.9 V
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF)	3.5 V
JEDEC-95 Code	DO-15
JESD-30 Code	O-PALF-W2
JESD-609 Code	e3
Moisture Sensitivity Level	1
Non-rep Peak Rev Power Dis-Max	600 W
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-65 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	260
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	5 W
Qualification Status	Not Qualified
Reference Standard	MIL-STD-750
Rep Pk Reverse Voltage-Max	33.3 V
Reverse Current-Max	5 uA
Reverse Test Voltage	33.3 V
Sub Category	Transient Suppressors
Surface Mount	NO
Technology	AVALANCHE
Terminal Finish	Tin (Sn)
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	10
