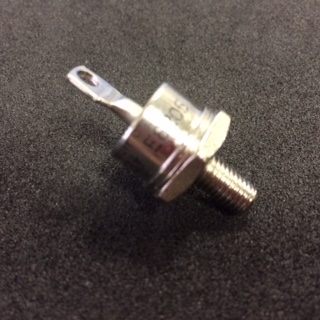

BZY 91 C33

Name: BZY 91 C33
Brand: LITTLEFUSE
SKU: 120198850-0000-0000-0000

BZY 91 C33 - LITTLEFUSE の商品詳細ページです。

２営業日以内に回答いたします

BZY 91 C33 の詳細情報

型番	BZY 91 C33
メーカー	LITTLEFUSE
Additional Feature	HIGH RELIABILITY
Breakdown Voltage-Max	35 V
Breakdown Voltage-Min	31 V
Breakdown Voltage-Nom	33 V
Case Connection	ANODE
Clamping Voltage-Max	44 V
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
Dynamic Impedance-Max	1.2 ohm
JEDEC-95 Code	DO-5
JESD-30 Code	O-MUPM-D1
JESD-609 Code	e0
Non-rep Peak Rev Power Dis-Max	9500 W
Number of Elements	1
Number of Terminals	1
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	METAL
Package Shape	ROUND
Package Style	POST/STUD MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	100 W
Qualification Status	Not Qualified
Reference Standard	MIL-19500
Reference Voltage-Nom	33 V
Reverse Current-Max	1000 uA
Reverse Test Voltage	22 V
Sub Category	Voltage Reference Diodes
Surface Mount	NO
Technology	AVALANCHE
Terminal Finish	TIN LEAD
Terminal Form	SOLDER LUG
Terminal Position	UPPER
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tol-Max	5 %
Working Test Current	1000 mA
