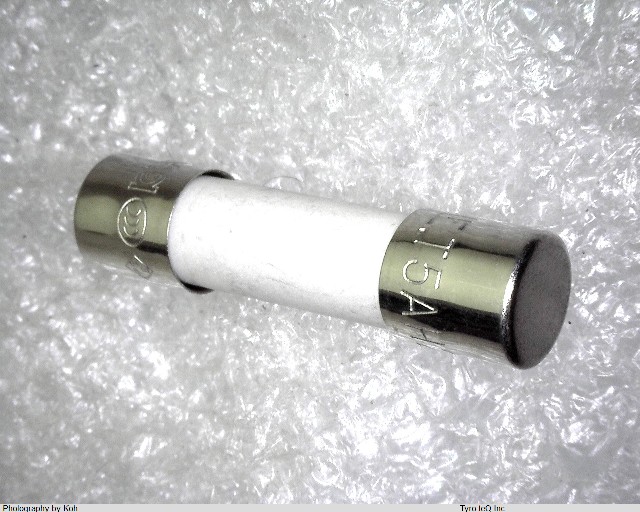

0215005.MXP データシート

Name: 0215005.MXP
Brand: LITTLEFUSE
SKU: 10021649-0000-0000-0000

0215005.MXP - LITTLEFUSE の商品詳細ページです。

２営業日以内に回答いたします

0215005.MXP の詳細情報

型番	0215005.MXP
メーカー	LITTLEFUSE
データシート
Additional Feature	PRE ARCHING TIME: OPEN WITHIN 10 MILLISEC AT 1000% RATED CURRENT
Blow Characteristic	TIME LAG
Body Height	20 mm
Body Length or Diameter	5.2 mm
Circuit Protection Type	ELECTRIC FUSE
Fuse Size	5x20mm
JESD-609 Code	e3
Joule-integral-Nom	66.095 J
Manufacturer Series	0215
Mounting Feature	INLINE/HOLDER
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Packing Method	BULK
Physical Dimension	5.2mm x 20mm
Pre-arcing Rating	66.095 A2/s
Rated Breaking Capacity	1500 A
Rated Current	5 A
Rated Voltage	250 V
Rated Voltage(AC)	250 V
Rated Voltage(DC)	250 V
Reference Standard	CCC; CE; CSA; IEC; KC; PSE; SEMKO; SEV; UL; VDE
Terminal Finish	NICKEL
Terminal Shape	END CAP
Trip Time or Delay	0.01 Seconds
