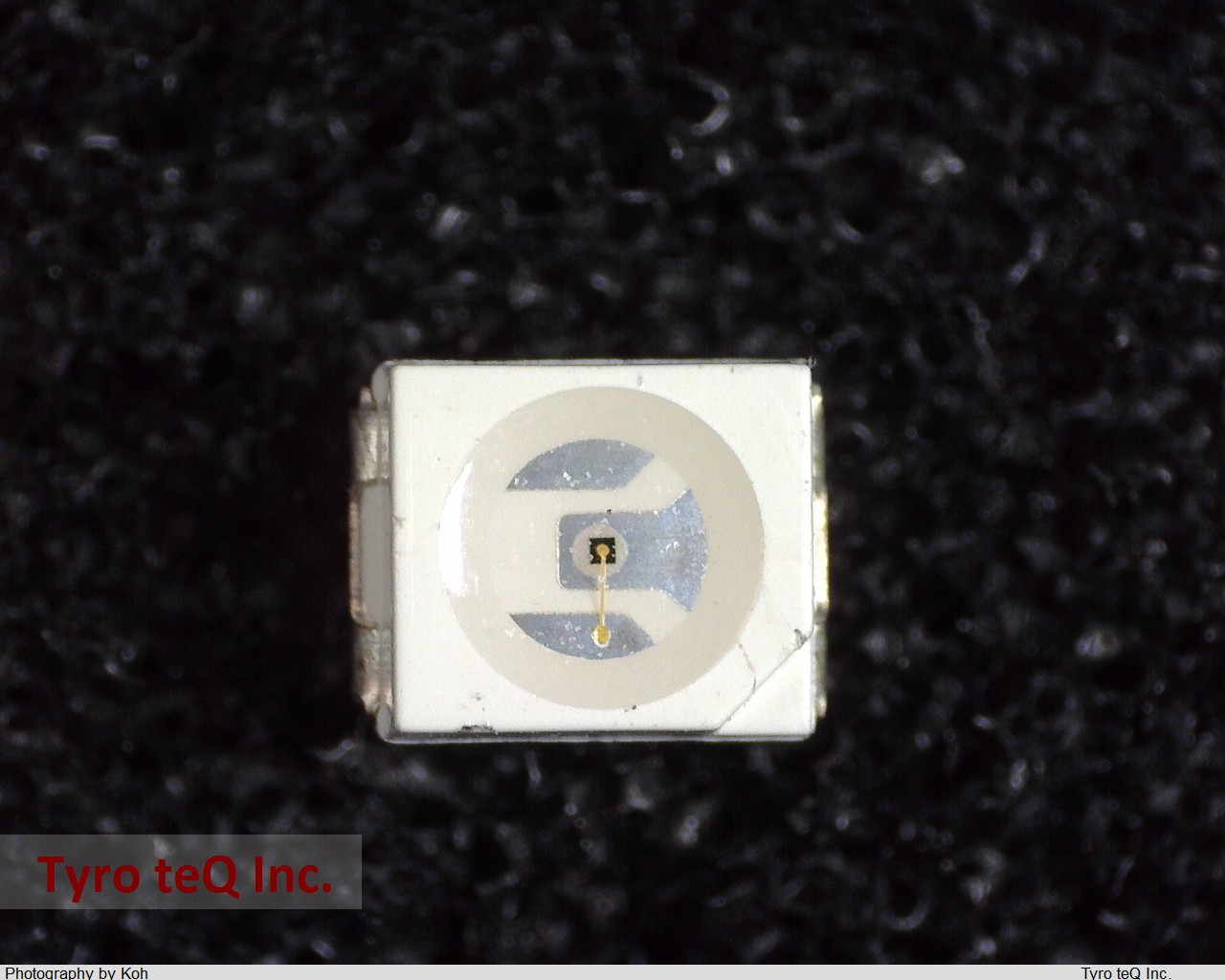

LTST-T680KFKT
1
-
- 個
２営業日以内に回答いたします
LTST-T680KFKT の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LTST-T680KFKT |
|---|---|
| メーカー | LITE-ON |
| Additional Feature | IC COMPATIBLE |
| Color | ORANGE |
| Configuration | SINGLE |
| Forward Current-Max | 0.03 A |
| Forward Voltage-Max | 2.4 V |
| Lens Type | WATER CLEAR |
| Luminous Intensity-Min | 0.112 cd |
| Luminous Intensity-Nom | 233.5 mcd |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Optoelectronic Device Type | SINGLE COLOR LED |
| Overall Height | 1.9 mm |

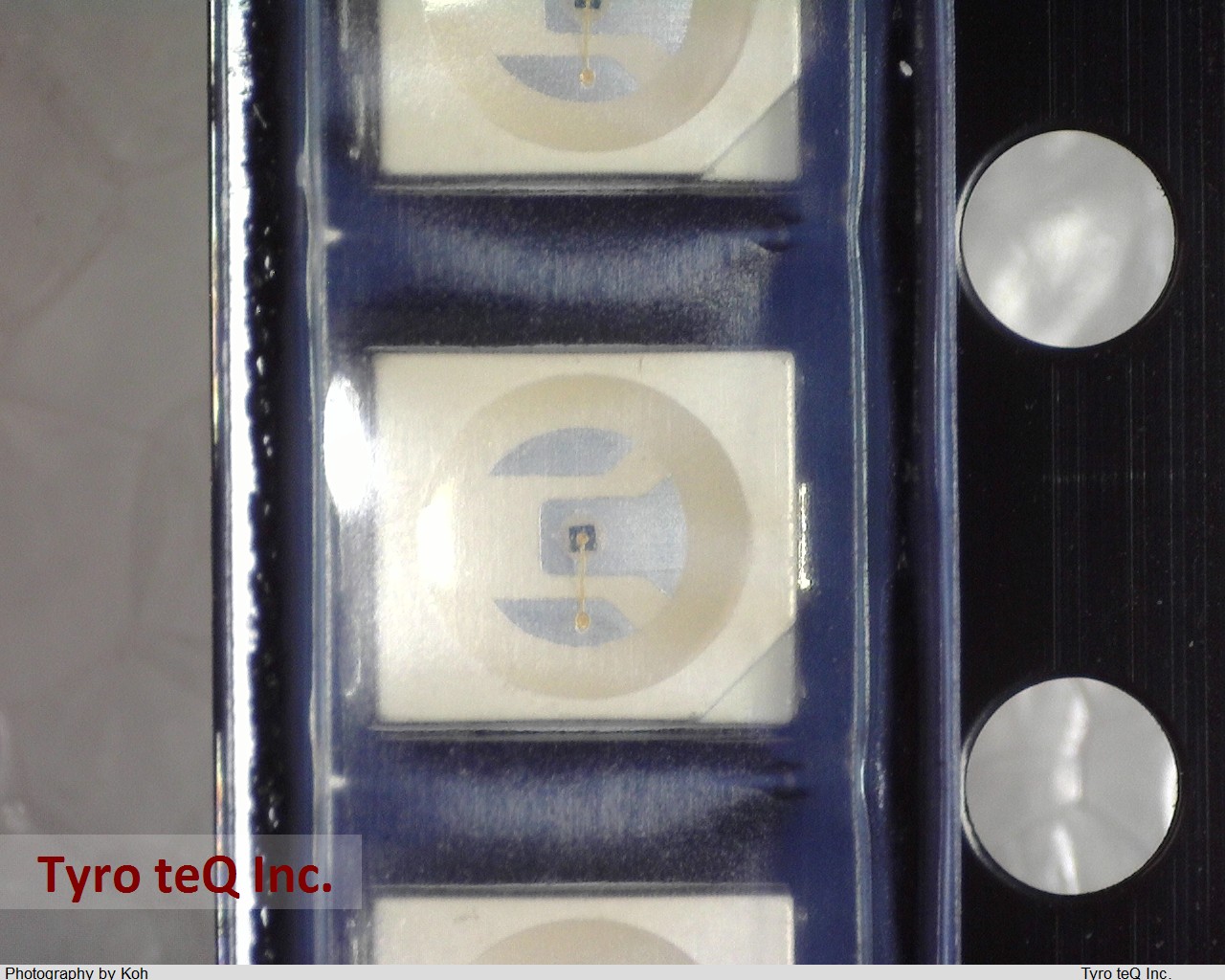

| Packing Method | TR, 7 INCH |
| Peak Wavelength | 611 nm |
| Reverse Voltage-Max | 5 V |
| Shape | ROUND |
| Terminal Pitch | 2.8 mm |
| Viewing Angle | 120 deg |
| 会社名称 | Lite-On Technology Corporation |
|---|---|
| 設立 | 1975 |
| URL | http://www.liteon.com/ |
