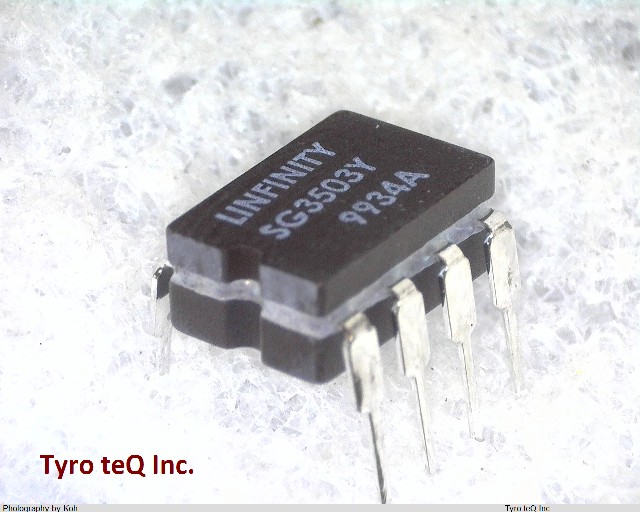

SG3503Y Linfinity

SG3503Y
SG3503Y

SG3503Y - LINFINITY の商品詳細ページです。

1

57時間13分後 以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

SG3503Y の詳細情報

  • 仕様・詳細
  • メーカー情報
型番SG3503Y
メーカーLINFINITY
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code R-CDIP-T8
JESD-609 Code e0
Length 9.905 mm
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Output Voltage-Max 2.525 V
Output Voltage-Min 2.475 V
Output Voltage-Nom 2.5 V
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Voltage References
Supply Current-Max (Isup) 2 mA
Supply Voltage-Max (Vsup) 40 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temp Coef of Voltage-Max 10 ppm/Cel
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trim/Adjustable Output NO V
Voltage Tolerance-Max 1 %
Width 7.62 mm
会社名称Microsemi Corporation.
所在地One Enterprise Aliso Viejo, CA 92656 USA
URLhttp://www.microsemi.com/
