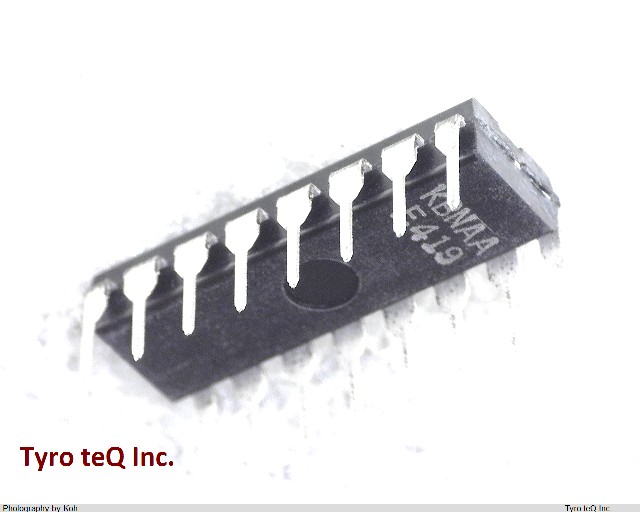

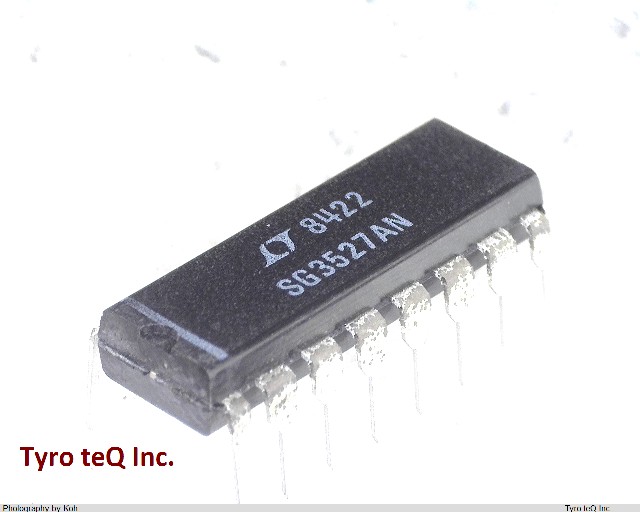

SG3527AN

Name: SG3527AN
Brand: LINEAR TECH
SKU: 290187924-0000-0000-0000

SG3527AN - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

SG3527AN の詳細情報

型番	SG3527AN
メーカー	LINEAR TECH
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	35 V
Input Voltage-Min	8 V
Input Voltage-Nom	20 V
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.05 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	0.1 A
Output Voltage-Max	5.15 V
Output Voltage-Min	5.05 V
Output Voltage-Nom	5.1 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	235
Qualification Status	Not Qualified
Seated Height-Max	3.8 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	20 mA
Surface Mount	NO
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	350 kHz
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	6.35 mm
