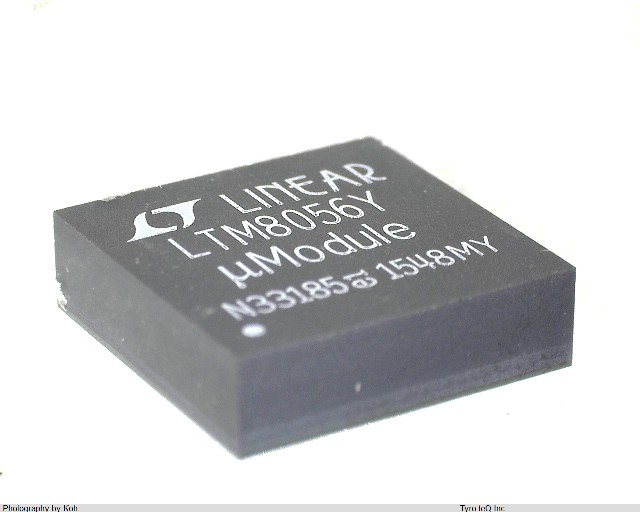

LTM8056IY#PBF Lineartech

LTM8056IY#PBF - LINEAR TECH の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LTM8056IY#PBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LTM8056IY#PBF
メーカーLINEAR TECH
Additional Feature OUTPUT VOLTAGE RANGE FROM 1.2 VOLT TO 48 VOLT
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 58 V
Input Voltage-Max (V) 58
Input Voltage-Min 5 V
Input Voltage-Min (V) 5
Input Voltage-Nom 6 V
Input Voltage-Nom (V) 6
J-STD-609 Code e1
JESD-30 Code S-PBGA-B121
JESD-609 Code e1
Length 15 mm
Length (mm) 15
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 121
Operating Temperature-Max 125 Cel
Operating Temperature-Max (Cel) 125
Operating Temperature-Min -40 Cel
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY

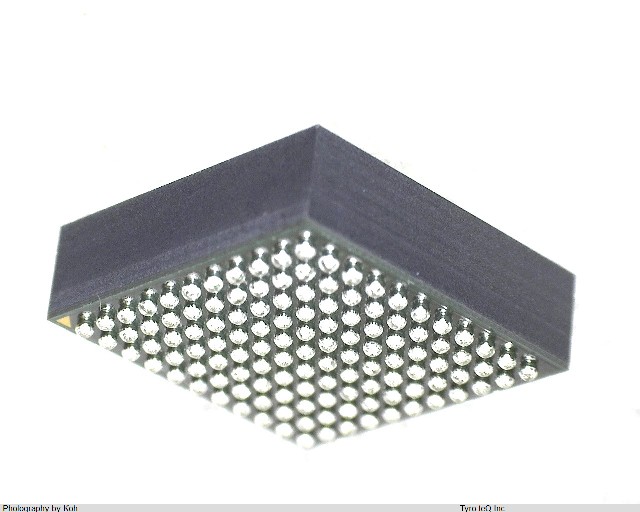

Package Code BGA
Package Shape SQUARE
Package Style GRID ARRAY Meter
Peak Reflow Temperature (Cel) 245
Seated Height-Max 5.12 mm
Seated Height-Max (mm) 5.12
Surface Mount YES
Switcher Configuration BUCK-BOOST
Switching Frequency-Max 800 kHz
Switching Frequency-Max (kHz) 800
Temperature Grade AUTOMOTIVE
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Pitch (mm) 1.27
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 15 mm
Width (mm) 15
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
