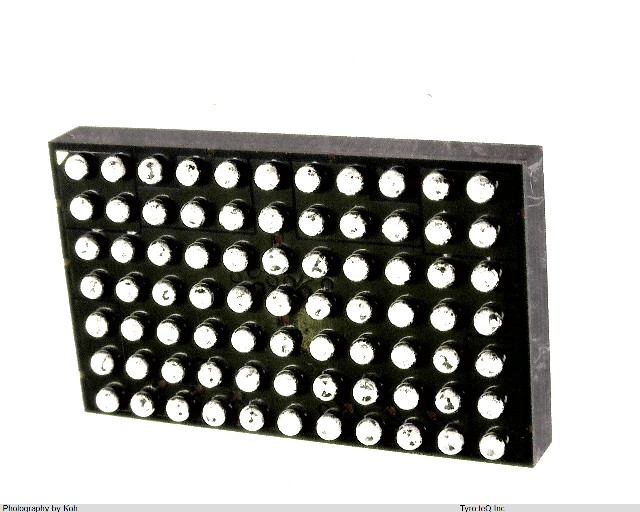

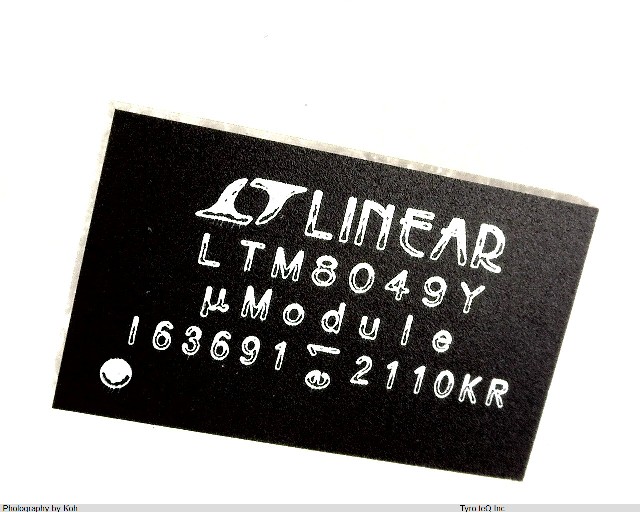

LTM8049EY#PBF

Name: LTM8049EY#PBF
Brand: LINEAR TECH
SKU: 220223432-0000-0000-0000

LTM8049EY#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM8049EY#PBF の詳細情報

型番	LTM8049EY#PBF
メーカー	LINEAR TECH
Additional Feature	ADJUSTBLE OUTPUT MODE FROM 2.5 V AND 24 V AND ADJUSTBLE OUTPUT MODE FROM -2.5 V AND -24 V
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	20 V
Input Voltage-Max (V)	20
Input Voltage-Min	2.6 V
Input Voltage-Min (V)	2.6
Input Voltage-Nom	12 V
Input Voltage-Nom (V)	12
JESD-30 Code	R-PBGA-B77
Length	15 mm
Length (mm)	15
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	77
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Voltage-Nom	2.5 V
Output Voltage-Nom (V)	2.5
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Shape	RECTANGULAR
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	2.62 mm
Seated Height-Max (mm)	2.62
Surface Mount	YES
Switcher Configuration	PHASE-SHIFT
Switching Frequency-Max	2900 kHz
Switching Frequency-Max (kHz)	2900
Temperature Grade	OTHER
Terminal Form	BALL
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	9 mm
Width (mm)	9
