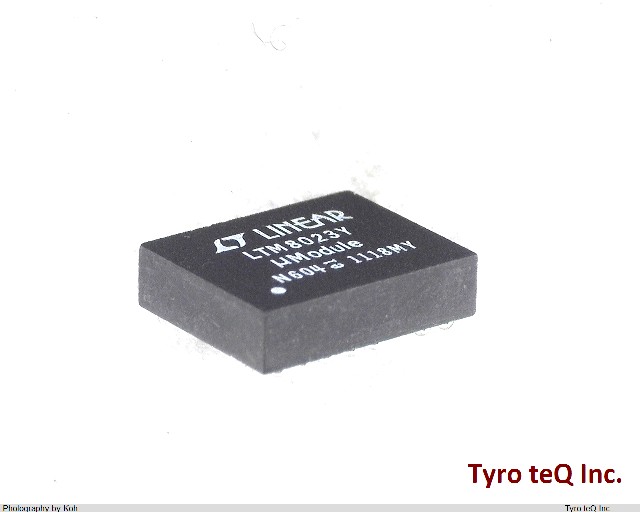

LTM8023EY#PBF

Name: LTM8023EY#PBF
Brand: LINEAR TECH
SKU: 220215326-0000-0000-0000

LTM8023EY#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM8023EY#PBF の詳細情報

型番	LTM8023EY#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO AVAILABLE VOUT=10V, OUTPUT VOLTAGE RANGE FROM 0.8 VOLT TO 10 VOLT
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	36 V
Input Voltage-Max (V)	36
Input Voltage-Min	3.6 V
Input Voltage-Min (V)	3.6
Input Voltage-Nom	10 V
Input Voltage-Nom (V)	10
JESD-30 Code	R-PBGA-B50
Length	11.25 mm
Length (mm)	11.25
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	50
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	2 A
Output Current-Max (A)	2
Output Voltage-Nom	0.8 V
Output Voltage-Nom (V)	0.8
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA50,7X8,50
Package Shape	RECTANGULAR
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	250
Qualification Status	Not Qualified
Seated Height-Max	3.62 mm
Seated Height-Max (mm)	3.62
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2400 kHz
Switching Frequency-Max (kHz)	2400
Temperature Grade	INDUSTRIAL

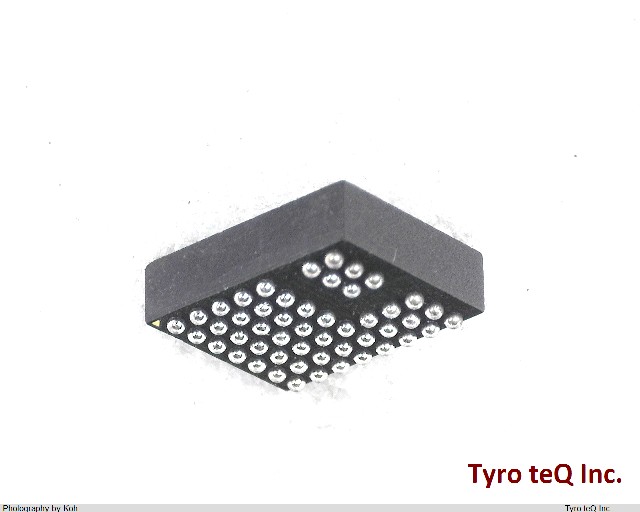

Terminal Form	BALL
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	9 mm
Width (mm)	9
