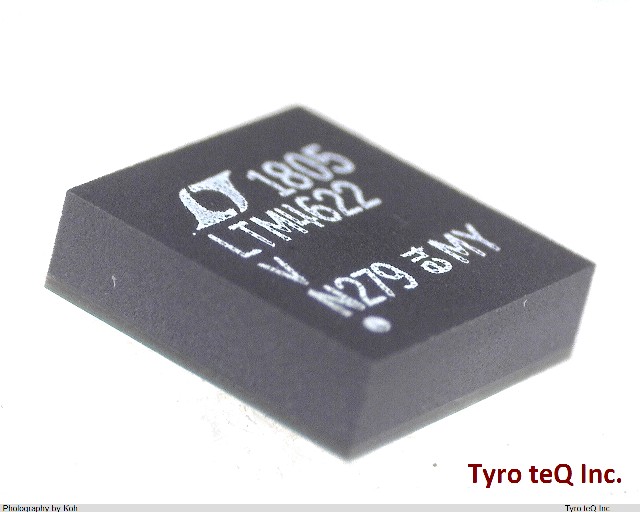

LTM4622IV#PBF

Name: LTM4622IV#PBF
Brand: LINEAR TECH
SKU: 220223573-0000-0000-0000

LTM4622IV#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM4622IV#PBF の詳細情報

型番	LTM4622IV#PBF
メーカー	LINEAR TECH
Additional Feature	OUTPUT VOLTAGE RANGE FROM 0.6 VOLT TO 5.5 VOLT
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	20 V
Input Voltage-Max (V)	20
Input Voltage-Min	3.6 V
Input Voltage-Min (V)	3.6
Input Voltage-Nom	12 V
Input Voltage-Nom (V)	12
J-STD-609 Code	e4
JESD-30 Code	S-XBGA-N25
JESD-609 Code	e4
Length	6.25 mm
Length (mm)	6.25
Moisture Sensitivity Level	4
Number of Functions	1
Number of Terminals	25
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY

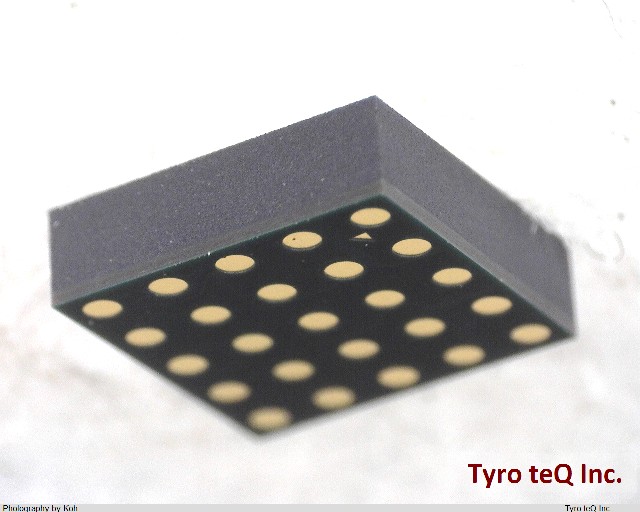

Package Code	LGA
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	2.62 mm
Seated Height-Max (mm)	2.62
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1000 kHz
Switching Frequency-Max (kHz)	1000
Temperature Grade	AUTOMOTIVE
Terminal Finish	GOLD
Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	6.25 mm
Width (mm)	6.25
