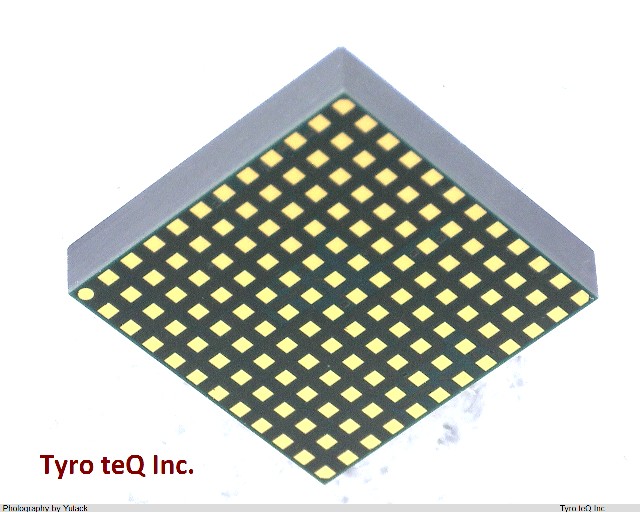

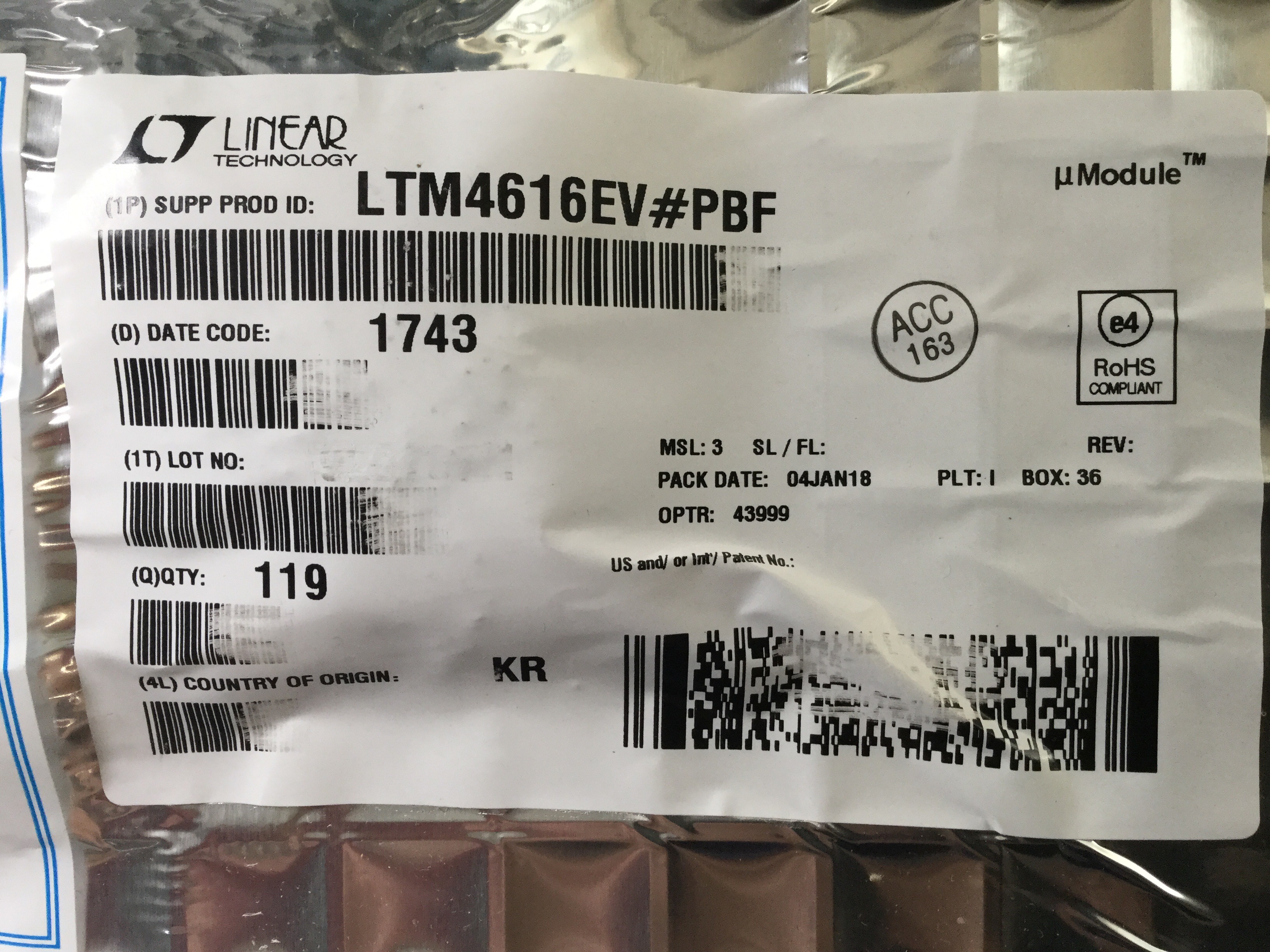

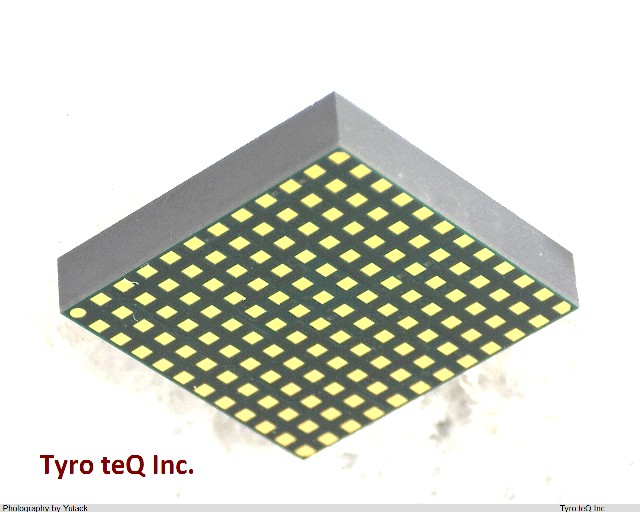

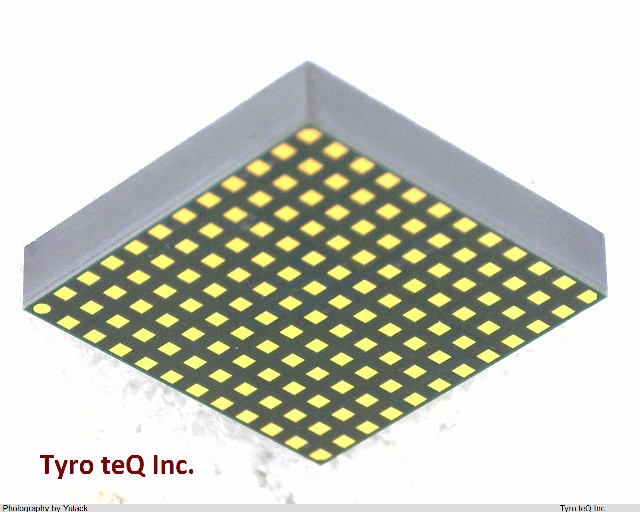

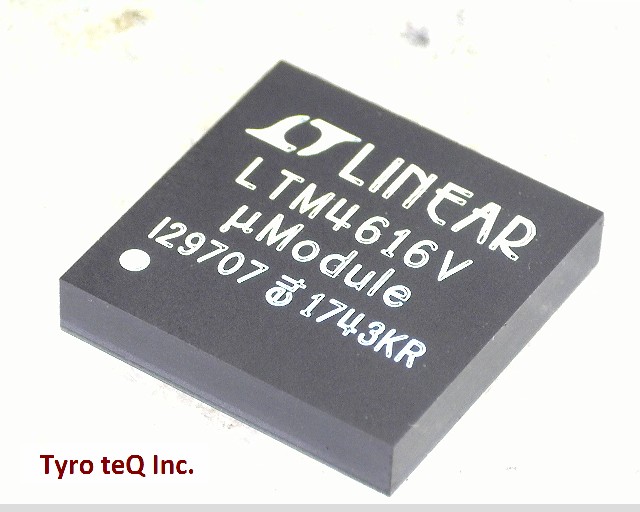

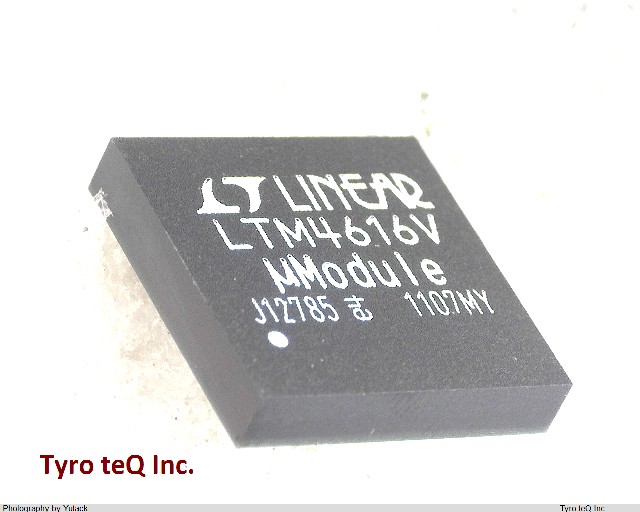

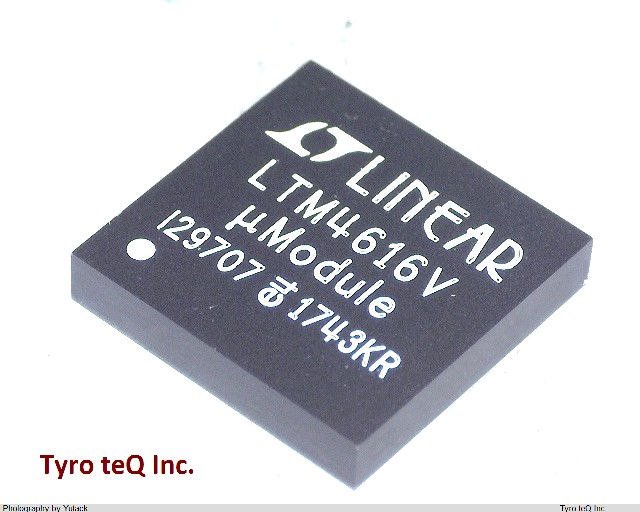

LTM4616EV#PBF

Name: LTM4616EV#PBF
Brand: LINEAR TECH
SKU: 220215325-0000-0000-0000

LTM4616EV#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM4616EV#PBF の詳細情報

型番	LTM4616EV#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE 0.6V TO 5V
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	5.5 V
Input Voltage-Max (V)	5.5
Input Voltage-Min	2.7 V
Input Voltage-Min (V)	2.7
Input Voltage-Nom	5 V
Input Voltage-Nom (V)	5
J-STD-609 Code	e4
JESD-30 Code	S-PBGA-N144
JESD-609 Code	e4
Length	15 mm
Length (mm)	15
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	144
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	8 A
Output Current-Max (A)	8
Output Voltage-Nom	1.49 V
Output Voltage-Nom (V)	1.49
Package Body Material	PLASTIC/EPOXY
Package Code	LGA
Package Equivalence Code	LGA144,12X12,50
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	2.92 mm
Seated Height-Max (mm)	2.92
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	PHASE-SHIFT
Switching Frequency-Max	1750 kHz
Switching Frequency-Max (kHz)	1750
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	GOLD
Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	15 mm
