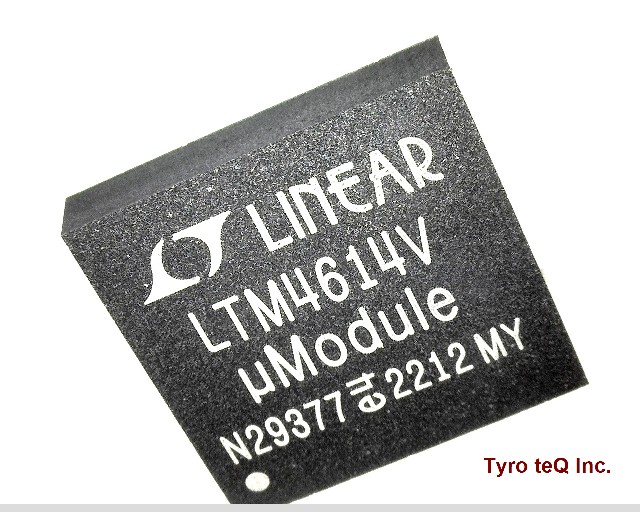

LTM4614EV#PBF

Name: LTM4614EV#PBF
Brand: LINEAR TECH
SKU: 220222467-0000-0000-0000

LTM4614EV#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM4614EV#PBF の詳細情報

型番	LTM4614EV#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 5V
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Input Voltage-Max	5.5 V
Input Voltage-Min	2.375 V
Input Voltage-Nom	5 V
JESD-30 Code	S-PBGA-N144
JESD-609 Code	e4
Length	15 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	144
Operating Temperature-Max	125 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	8 A
Output Voltage-Nom	1.49 V
Package Body Material	PLASTIC/EPOXY
Package Code	LGA
Package Equivalence Code	LGA144,12X12,50
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	2.92 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	1250 kHz
Temperature Grade	OTHER
Terminal Finish	GOLD
Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	15 mm
