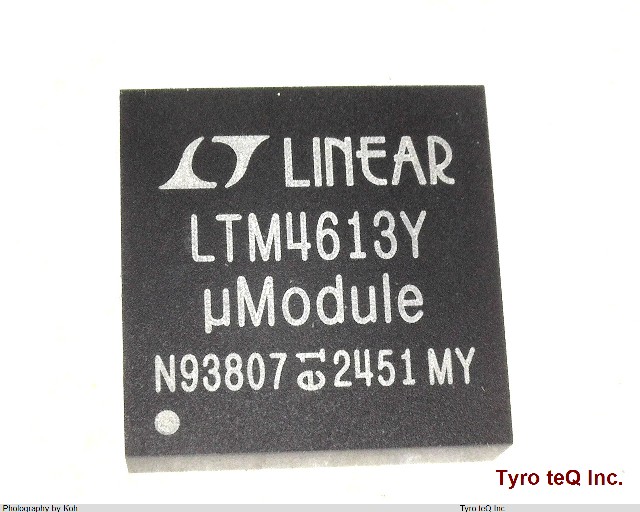

LTM4613EY#PBF

Name: LTM4613EY#PBF
Brand: LINEAR TECH
SKU: 220223598-0000-0000-0000

LTM4613EY#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM4613EY#PBF の詳細情報

型番	LTM4613EY#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 3.3 TO 15V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	36 V
Input Voltage-Max (V)	36
Input Voltage-Min	5 V
Input Voltage-Min (V)	5
Input Voltage-Nom	24 V
Input Voltage-Nom (V)	24
J-STD-609 Code	e1
JESD-30 Code	S-PBGA-B133
JESD-609 Code	e1
Length	15 mm
Length (mm)	15
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	133
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Voltage-Nom	12.07 V
Output Voltage-Nom (V)	12.07
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Seated Height-Max	5.12 mm
Seated Height-Max (mm)	5.12
Surface Mount	YES
Switching Frequency-Max	600 kHz
Switching Frequency-Max (kHz)	600
Temperature Grade	OTHER
Terminal Finish	TIN SILVER COPPER

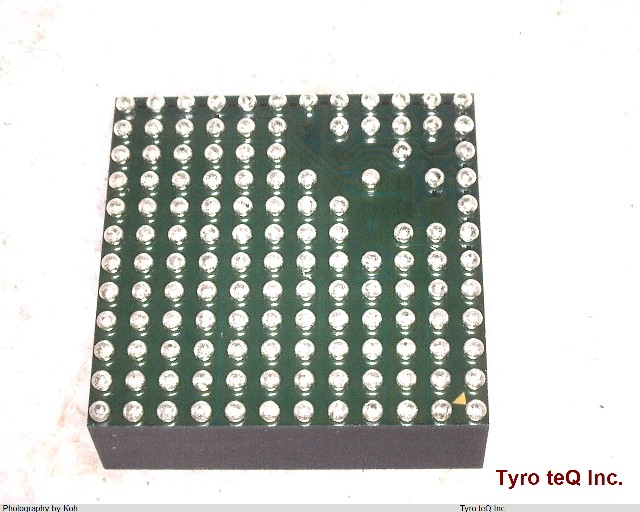

Terminal Form	BALL
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	BOTTOM
Width	15 mm
Width (mm)	15
