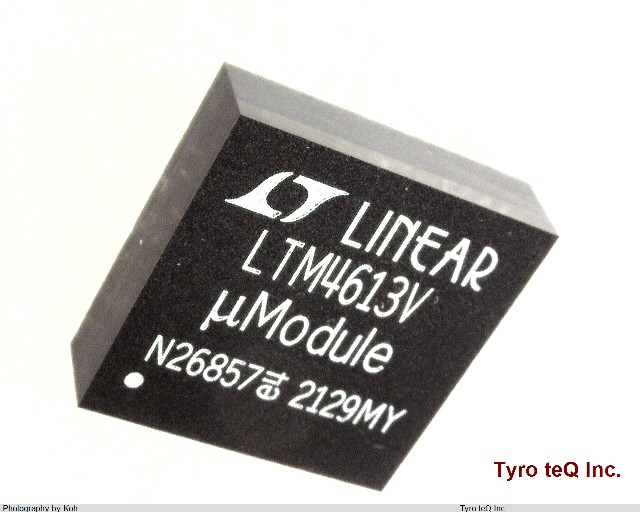

LTM4613EV#PBF

Name: LTM4613EV#PBF
Brand: LINEAR TECH
SKU: 220206413-0000-0000-0000

LTM4613EV#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LTM4613EV#PBF の詳細情報

型番	LTM4613EV#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 3.3 TO 15V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	36 V
Input Voltage-Max (V)	36
Input Voltage-Min	5 V
Input Voltage-Min (V)	5
Input Voltage-Nom	24 V
Input Voltage-Nom (V)	24
J-STD-609 Code	e4
JESD-30 Code	S-XBGA-N133
JESD-609 Code	e4
Length	15 mm
Length (mm)	15
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	133
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	8 A
Output Current-Max (A)	8
Output Voltage-Nom	12.07 V
Output Voltage-Nom (V)	12.07
Package Body Material	UNSPECIFIED
Package Code	LGA
Package Equivalence Code	LGA133,12X12,50
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	4.42 mm
Seated Height-Max (mm)	4.42
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	600 kHz
Switching Frequency-Max (kHz)	600
Temperature Grade	OTHER
Terminal Finish	GOLD

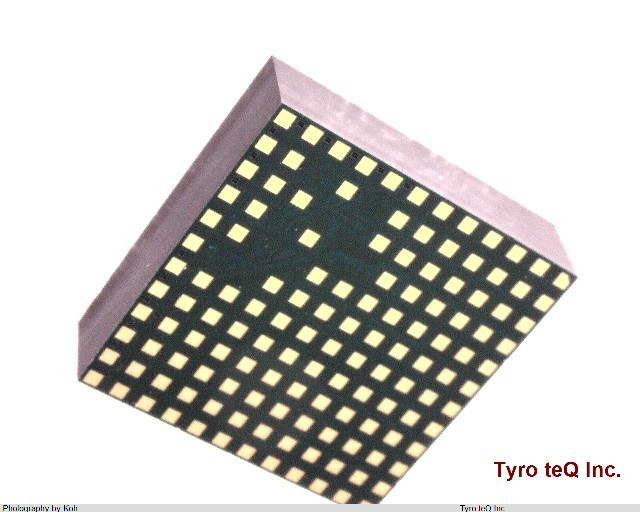

Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	15 mm
Width (mm)	15
